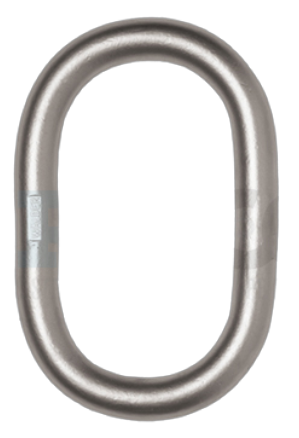

G60 Oblong Master Link
G60 Oblong Master Link
- Brand: Cromox
- Capacity: 0.23t to 16.00t
Suitable for 1 and 2 leg chain slings, this high quality and corrosion resistant Grade 60 oblong master link provides a secure connection point and is ideal for heavy duty lifting applications in marine, wastewater, construction and industrial environments.
- Australian Standard: AS 3776
Features
Industries
Documents
Features
- Sand blasted
- Corrosion and rust resistant
- Manufactured from Grade 60 stainless steel
Industries
- Civil
- Construction
- Engineering
- Infrastructure
- Marine
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | FOR CHAIN 1 LEG | FOR CHAIN 2 LEG 90° | NET WEIGHT |
|---|---|---|---|---|
| BCCAG6 | 0.23t | 0.043.kg | ||
| BCCAG8 | 0.40t | 4mm | – | 0.070kg |
| BCKW-CAG10 | 0.63t | 5mm | 4mm | 0.150kg |
| BCKW-CAG13 | 1.55t | 6/7/8mm | 5/6mm | 0.340kg |
| BCKW-CAG16 | 2.45t | 10mm | 7/8mm | 0.530kg |
| BCCAG18 | 3.55t | – | 10mm | 0.800kg |
| BCCAG22 | 6.00t | 13/16mm | 13mm | 1.500kg |
| BCCAG26 | 8.00t | 18mm | 16mm | 2.300kg |
| BCCAG32 | 12.00t | 20mm | 18mm | 2.900kg |
| BCCAG36 | 16.00 | – | 20mm | 6.350kg |
Dimensions
| PRODUCT CODE | D | T | B |
|---|---|---|---|
| BCCAG6 | 6mm | 60mm | 25mm |
| BCCAG8 | 8mm | 54mm | 30mm |
| BCKW-CAG10 | 10mm | 80mm | 50mm |
| BCKW-CAG13 | 13mm | 110mm | 60mm |
| BCKW-CAG16 | 16mm | 110mm | 60mm |
| BCCAG18 | 18mm | 135mm | 75mm |
| BCCAG22 | 22mm | 160mm | 90mm |
| BCCAG26 | 26mm | 180mm | 100mm |
| BCCAG32 | 32mm | 200mm | 110mm |
| BCCAG36 | 36mm | 260mm | 140mm |
