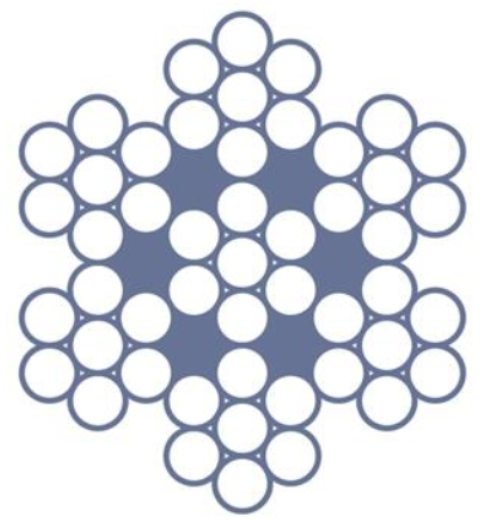

7×7 WSC G1770 Wire Rope
Our 7x7 steel core galvanised wire ropes have a semi-flexible characteristic and are suitable for irrigation wires, guy wires catenary or general purpose uses wherever stiff rope is required for the application. Available by the metre or reel.
- Australian Standard: AS 3569
Features
Industries
Documents
Features
- Semi-flexible construction
- Minimal stretch co-efficient
- Manufactured from Grade 1770 galvanised steel
Industries
- Civil
- Construction
- Cranes
- Engineering
- Entertainment
- Infrastructure
- Lifts/Elevators
- Marine
- Ports
Documents
Specifications
Dimensions
Specifications
PRODUCT CODE | SIZE | GRADE | LENGTH |
---|---|---|---|
AL878062N | 6mm | 1770 | 2000m |
AL878070N | 7mm | 1770 | 1000m |
AL878083N | 8mm | 1770 | 3000m |
AL878092N | 9mm | 1770 | 2000m |
AL878093N | 9mm | 1770 | 3000m |
