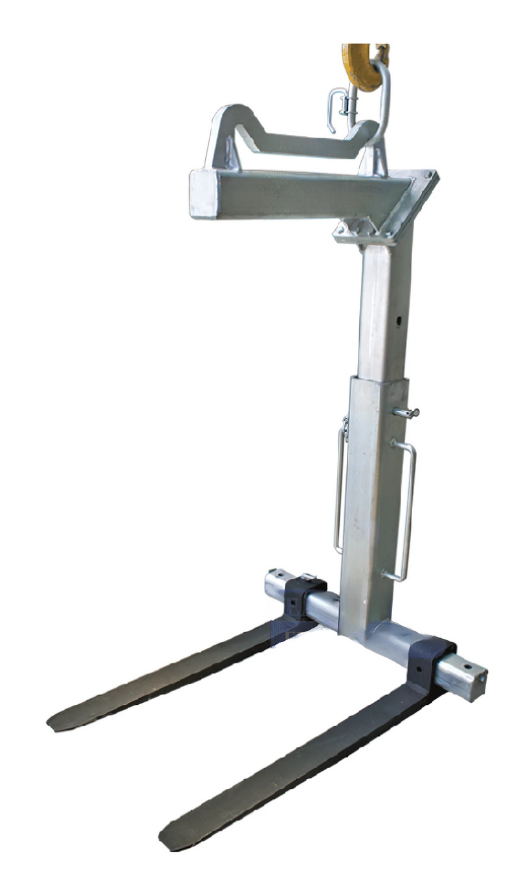

Adjustable Pallet Hook
Adjustable Pallet Hook
- Brand: East West Engineering
- Capacity: 2.0t
Constructed from high tensile steel, this Adjustable Pallet Hook is ideal for the safe and efficient handling of palletised loads, and is designed to be used with an overhead crane. Compliant with AS 1418, this adjustable pallet hook features adjustable body height and fork tine width and can be easily adjusted to ensure loads remain balanced at all times. Finished in a durable zinc coating, this adjustable pallet hook is ideal for demanding applications in the construction and transportation industries.
- Australian Standard: AS 1418
Features
Industries
Documents
Features
- Zinc finish
- Adjustable body height
- Adjustable fork tine width
- Constructed from high tensile steel
Industries
- Construction
- Transportation
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | LOAD CENTRE | INSIDE CLEARANCE | FORK CENTRE SPEAD | NET WEIGHT |
|---|---|---|---|---|---|
| EWECHM200 | 2.0t | 600mm | 1245mm x 1845mm | 345mm, 625mm, 905mm | 242kg |
Dimensions
| PRODUCT CODE | CLEAR LENGTH FORK TINES |
|---|---|
| EWECHM200 | 100mm x 45mm x 1055mm |
