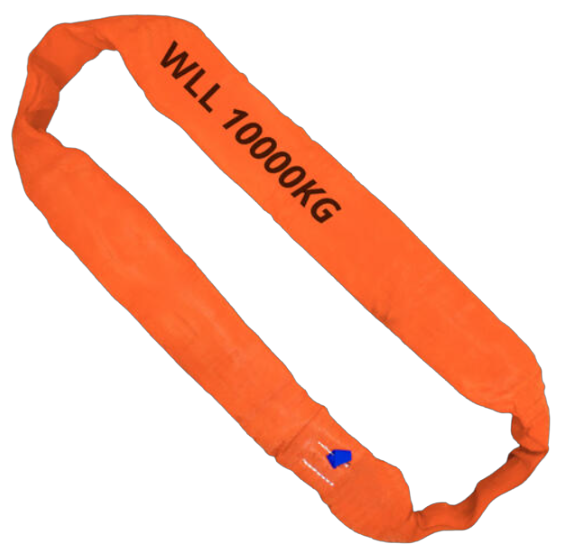

10t Round Sling
10t Round Sling
- Capacity: 10.0t
Strong and durable, our 10 tonne round slings are constructed from premium-grade, high tenacity polyester yarn and wound in a continuous hank to form an endless sling. The yarn hank is encapsulated in the non-load bearing tube to provide maximum wear protection. Each sling is manufactured to the highest standards and is individually proof tested, serial numbered, tagged and complete with test certificate.
- Australian Standard: AS4497
Features
Industries
Documents
Features
- Unique serial number
- Proof tested to 2 x W.L.L.
- Break load limit is 7 x the indicated load
Industries
- Civil
- Construction
- Cranes
- Engineering
- Entertainment
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | WIDTH | LENGTH | NET WEIGHT |
|---|---|---|---|---|
| AL901010 | 10t | 110mm | 1.0m | 2.200kg |
| AL901015 | 10t | 110mm | 1.5m | 3.030kg |
| AL901020 | 10t | 110mm | 2.0m | 3.300kg |
| AL901025 | 10t | 110mm | 2.5m | 4.200kg |
| AL901030 | 10t | 110mm | 3.0m | 5.000kg |
| AL901035 | 10t | 110mm | 3.5m | 5.980kg |
| AL901040 | 10t | 110mm | 4.0m | 7.980kg |
| AL901045 | 10t | 110mm | 4.5m | 8.080kg |
| AL901050 | 10t | 110mm | 5.0m | 10.510kg |
| AL901055 | 10t | 110mm | 5.5m | 9.896kg |
| AL901060 | 10t | 110mm | 6.0m | 11.980kg |
| AL901080 | 10t | 110mm | 8.0m | 17.000kg |
| AL901100 | 10t | 110mm | 10.0m | 19.870kg |
