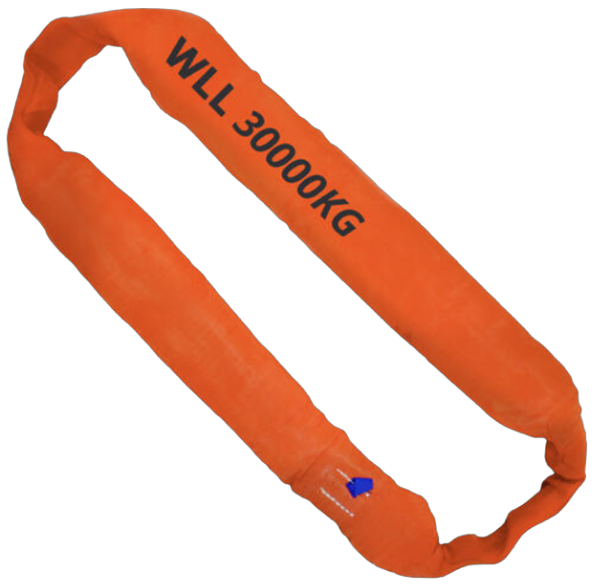

30t Round Sling
30t Round Sling
- Capacity: 30.0t
Strong and durable, our 30 tonne round slings are constructed from premium-grade, high tenacity polyester yarn and wound in a continuous hank to form an endless sling. The yarn hank is encapsulated in the non-load bearing tube to provide maximum wear protection. Each sling is manufactured to the highest standards and is individually proof tested, serial numbered, tagged and complete with test certificate.
- Australian Standard: AS4497
Features
Industries
Documents
Features
- Unique serial number
- Proof tested to 2 x W.L.L.
- Break load limit is 7 x the indicated load
Industries
- Civil
- Construction
- Cranes
- Engineering
- Entertainment
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | WIDTH | LENGTH | NET WEIGHT |
|---|---|---|---|---|
| AL903025 | 30t | 200mm | 2.5m | 25.0kg |
| AL903030 | 30t | 200mm | 3.0m | 29.0kg |
| AL903035 | 30t | 200mm | 3.5m | 33.0kg |
| AL903040 | 30t | 200mm | 4.0m | 37.5kg |
| AL903045 | 30t | 200mm | 4.5m | 41.9kg |
| AL903050 | 30t | 200mm | 5.0m | 46.7kg |
| AL903060 | 30t | 200mm | 6.0m | 63.0kg |
| AL903080 | 30t | 200mm | 8.0m | 85.0kg |
| AL903100 | 30t | 200mm | 10.0m | 93.0kg |
| AL903105 | 30t | 200mm | 15.0m | 159.0kg |
