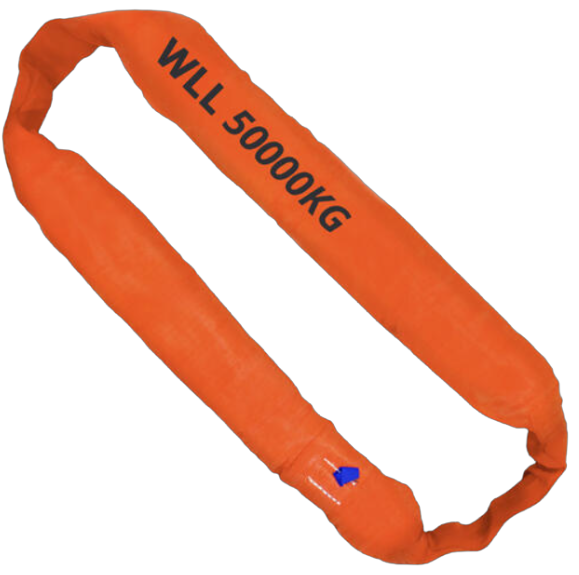

50t Round Sling
50t Round Sling
- Capacity: 50.0t
Strong and durable, our 50 tonne round slings are constructed from premium-grade, high tenacity polyester yarn and wound in a continuous hank to form an endless sling. The yarn hank is encapsulated in the non-load bearing tube to provide maximum wear protection. Each sling is manufactured to the highest standards and is individually proof tested, serial numbered, tagged and complete with test certificate.
- Australian Standard: AS4497
Features
Industries
Documents
Features
- Unique serial number
- Proof tested to 2 x W.L.L.
- Break load limit is 7 x the indicated load
Industries
- Civil
- Construction
- Cranes
- Engineering
- Entertainment
- Infrastructure
- Lifts/Elevators
- Manufacturers
- Marine
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | WIDTH | LENGTH | NET WEIGHT |
|---|---|---|---|---|
| AL905030 | 50t | 240mm | 3.0m | 52.74kg |
| AL905040 | 50t | 240mm | 4.0m | 70.30kg |
| AL905050 | 50t | 240mm | 5.0m | 87.90kg |
| AL905060 | 50t | 240mm | 6.0m | 105.50kg |
| AL905070 | 50t | 240mm | 7.0m | 123.08kg |
| AL905080 | 50t | 240mm | 8.0m | 140.70kg |
| AL905100 | 50t | 240mm | 10.0m | 170.00kg |
