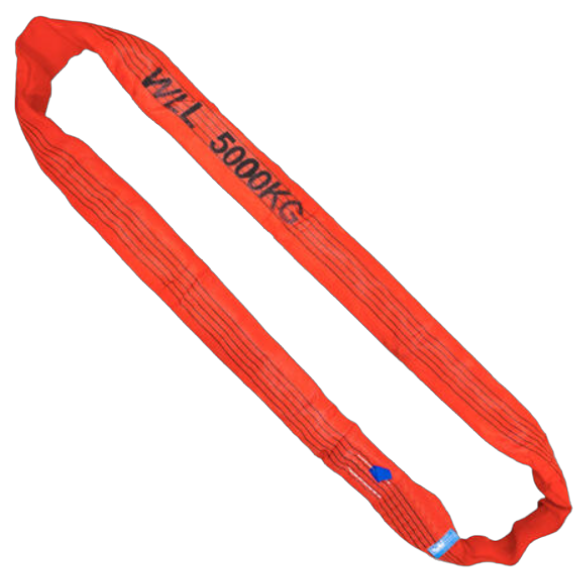

5t Round Sling
5t Round Sling
- Capacity: 5.0t
Strong and durable, our 5 tonne round slings are constructed from premium-grade, high tenacity polyester yarn and wound in a continuous hank to form an endless sling. The yarn hank is encapsulated in a non-load bearing tube to provide maximum wear protection. Each sling is individually proof tested, serial numbered, tagged and complete with test certificate.
- Australian Standard: AS 4497
Features
Industries
Documents
Features
- Unique serial number
- Proof tested to 2 x W.L.L.
- Break load limit is 7 x the indicated load
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Logistics
- Manufacturing
- Marine
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | WIDTH | LENGTH | NET WEIGHT |
|---|---|---|---|---|
| AL900510 | 5t | 80mm | 1.0m | 1.300kg |
| AL900515 | 5t | 80mm | 1.5m | 1.890kg |
| AL900520 | 5t | 80mm | 2.0m | 2.550kg |
| AL900525 | 5t | 80mm | 2.5m | 3.170kg |
| AL900530 | 5t | 80mm | 3.0m | 3.750kg |
| AL900535 | 5t | 80mm | 3.5m | 4.400kg |
| AL900540 | 5t | 80mm | 4.0m | 5.000kg |
| AL900545 | 5t | 80mm | 4.5m | 5.510kg |
| AL900550 | 5t | 80mm | 5.0m | 6.150kg |
| AL900555 | 5t | 80mm | 5.5m | 6.790kg |
| AL900560 | 5t | 80mm | 6.0m | 7.420kg |
| AL900580 | 5t | 80mm | 8.0m | 9.394kg |
| AL900591 | 5t | 80mm | 10.0m | 11.000kg |
