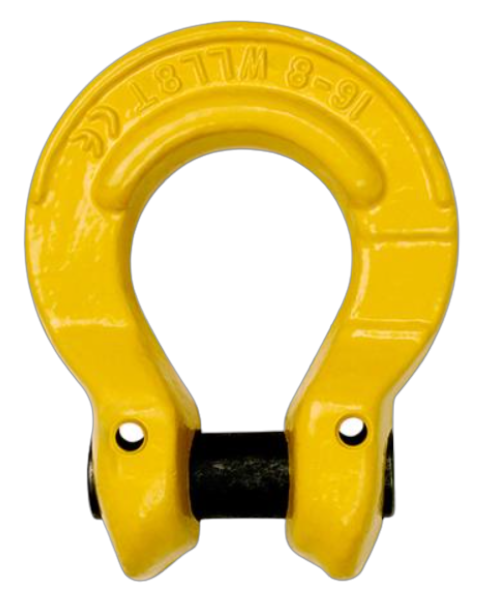

G80 Omega Link OL
G80 Omega Link OL
- Brand: Austlift
- Capacity: 1.12t to 8.0t
Our omega links are commonly used in conjunction with recessed head rings and chain, for chain slings and variable type slings.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- Safety factor of 4:1
- Individual test certificate available upon request
- Manufactured from G80 alloy steel, with a powder coated finish
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | SIZE | NET WEIGHT |
|---|---|---|---|
| AL104106 | 1.12t | 6mm | 0.12kg |
| AL104108 | 2.00t | 8mm | 0.22kg |
| AL104110 | 3.20t | 10mm | 0.36kg |
| AL104113 | 5.30t | 13mm | 0.71kg |
| AL104116 | 8.00t | 16mm | 1.30kg |
Dimensions
| PRODUCT CODE | A | B | C | D | W |
|---|---|---|---|---|---|
| AL104106 | 8mm | 20.5mm | 25.0mm | 12mm | 41mm |
| AL104108 | 10mm | 23.5mm | 35.0mm | 16mm | 52mm |
| AL104110 | 12mm | 31.5mm | 40.5mm | 17mm | 62mm |
| AL104113 | 15mm | 41.0mm | 54.0mm | 20mm | 81mm |
| AL104116 | 19mm | 49.5mm | 64.0mm | 26mm | 99mm |
