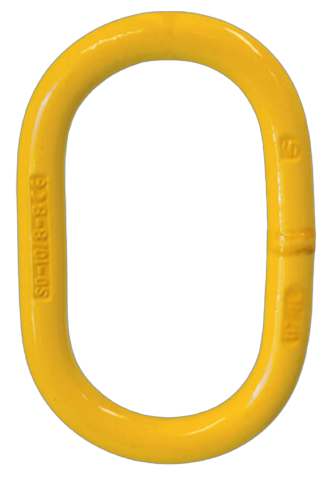

G80 Master Link Large SD
G80 Master Link Large SD
- Brand: Austlift
- Capacity: 1.1t to 54.5t
Austlift SD type head-rings are specially designed to cater for single leg and double leg chain slings or wire rope sling applications. With a wider and longer design compared to the regular series, these head-rings are suited for situations involving large crane hooks.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- Safety factor 4:1 for chain slings
- Safety factor 5:1 for wire rope slings
- Individual test certificates available on request
- Manufactured from G80 alloy steel, with a powder coated finish
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | SIZE 1 LEG | SIZE 2 LEG | NET WEIGHT |
|---|---|---|---|---|
| AL101006 | 1.1t | 6mm | – | 0.27kg |
| AL101008 | 2.0t | 8mm | 6mm | 0.44kg |
| AL101010 | 3.5t | 10mm | 8mm | 0.85kg |
| AL101013 | 5.5t | 13mm | 10mm | 1.48kg |
| AL101016 | 9.2t | 16mm | 13mm | 2.87kg |
| AL101020 | 13.8t | 20mm | 16mm | 5.66kg |
| AL101022 | 21.6t | 22mm | 20mm | 7.86kg |
| AL101026 | 26.0t | 26mm | 22mm | 10.15kg |
| AL101032 | 36.7t | 32mm | 26mm | 15.19kg |
| AL101036 | 54.5t | 36mm | 32mm | 24.79kg |
Dimensions
| PRODUCT CODE | B | C | D |
|---|---|---|---|
| AL101006 | 60mm | 100mm | 12mm |
| AL101008 | 70mm | 120mm | 14mm |
| AL101010 | 80mm | 140mm | 18mm |
| AL101013 | 95mm | 160mm | 22mm |
| AL101016 | 110mm | 190mm | 28mm |
| AL101020 | 140mm | 240mm | 35mm |
| AL101022 | 150mm | 250mm | 40mm |
| AL101026 | 150mm | 250mm | 45mm |
| AL101032 | 200mm | 300mm | 50mm |
| AL101036 | 200mm | 350mm | 60mm |
