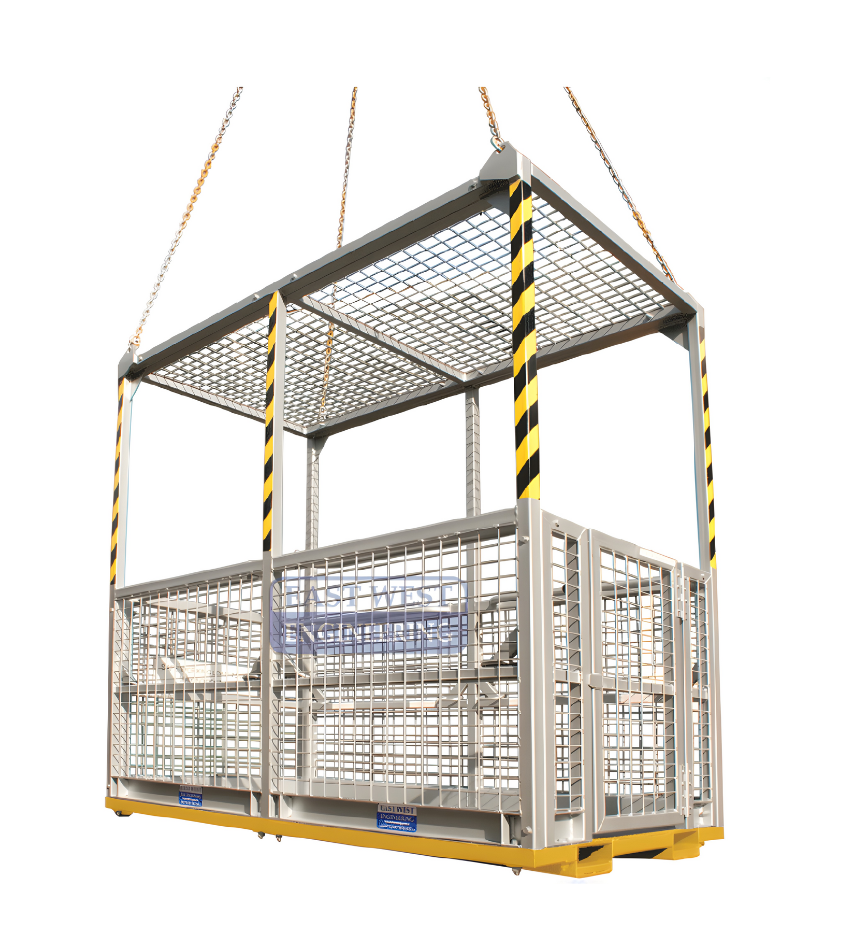

Crane Cage with Roof
- Brand: East West Engineering
- Capacity: 0.75t
Ideal for specialised, short duration tasks, this Crane Cage with mesh roof is suitable for elevating a up to six people, in situations where scaffolding or specialised access equipment cannot be used. Featuring a mesh roof for overhead protection, eight harness anchor points and handrails for operator safety, lifting chains for secure connection and fork pockets for ease of transport, this Crane Cage with roof is compliant to AS 1418.17 and is supplied with a load test certificate, risk control measure documents, WorkSafe registration and comprehensive instructions.
- Australian Standard: AS 1418.17
Features
Industries
Documents
Features
- Zinc finish
- Supplied with lifting chains
- Fitted with mesh roof and sides
- Fitted with eight safety harness anchor points and hand rails
Industries
- Construction
- Cranes
- Engineering
- Infrastructure
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | CAPACITY | FORK POCKET SIZE | FORK POCKET CENTRE | NET WEIGHT |
|---|---|---|---|---|---|
| EWEWP-NCR2R | 0.75t | 6 person | 185mm x 65mm | 590mm | 500kg |
Dimensions
| PRODUCT CODE | LENGTH | WIDTH |
|---|---|---|
| EWEWP-NCR2R | 2400mm | 1200mm |
