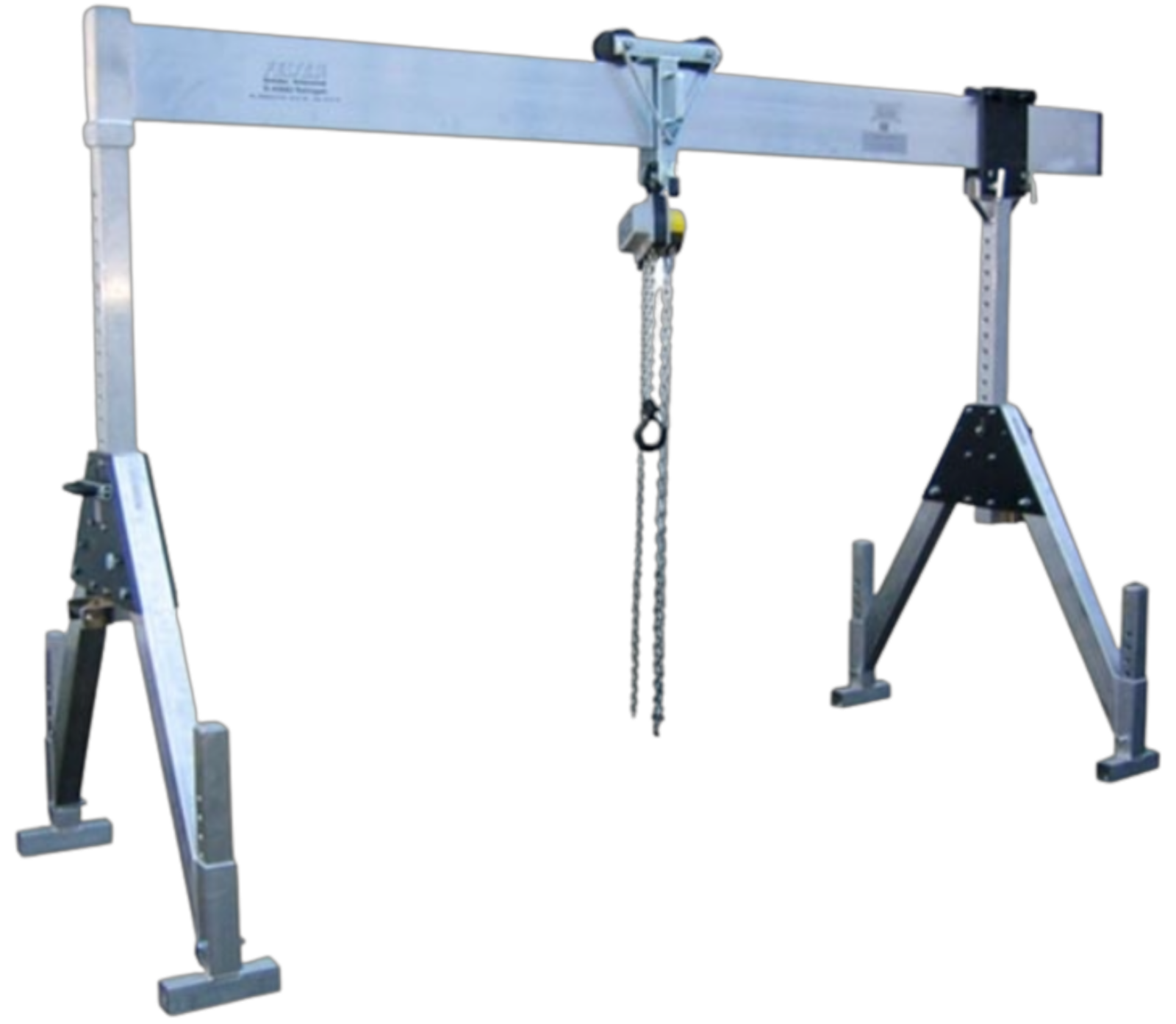

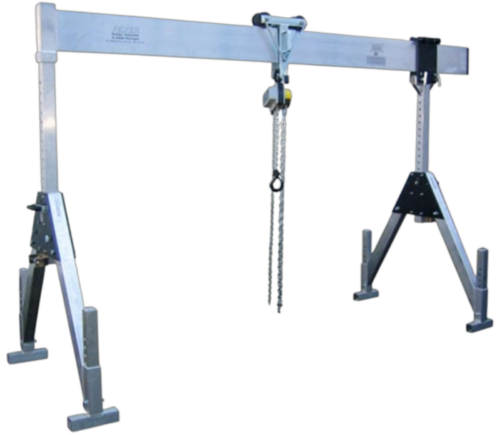

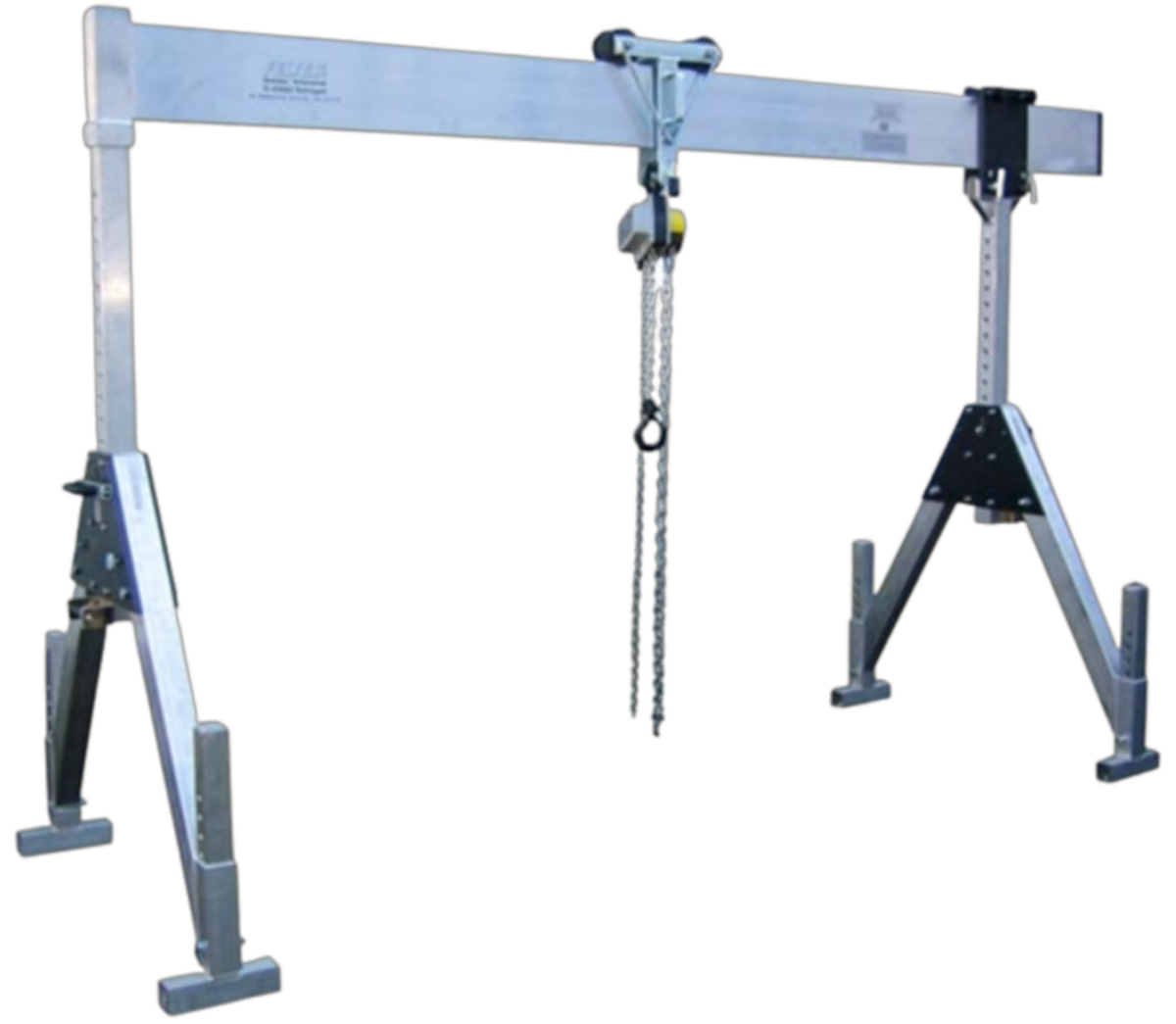

Folding Aluminium Gantry Crane
Folding Aluminium Gantry Crane
- Brand: Feltes
- Capacity: 1.5t
Strong and lightweight, this folding gantry crane is a versatile lifting solution that combines portability with robust functionality and greater load bearing capacity. Manufactured from aluminium with capacities from 0.5t to 1.5t, ground to trolley heights from 1.18 to 4.0 metres and load beam spans of 2m to 8m lengths, this gantry crane is ideal for applications in workshops, construction and warehouses.
Features
Industries
Documents
Features
- Adjustable height
- Collapsible lateral stands
- Manufactured from lightweight aluminium
Industries
- Civil
- Construction
- Engineering
- Hire
- Lifts/Elevators
- Ports
Specifications

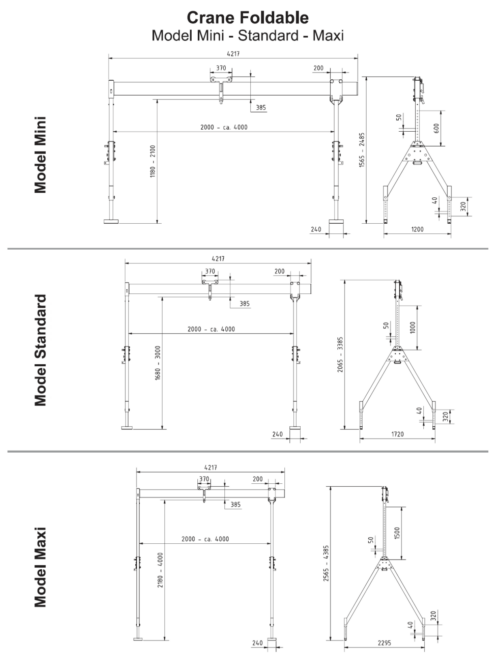

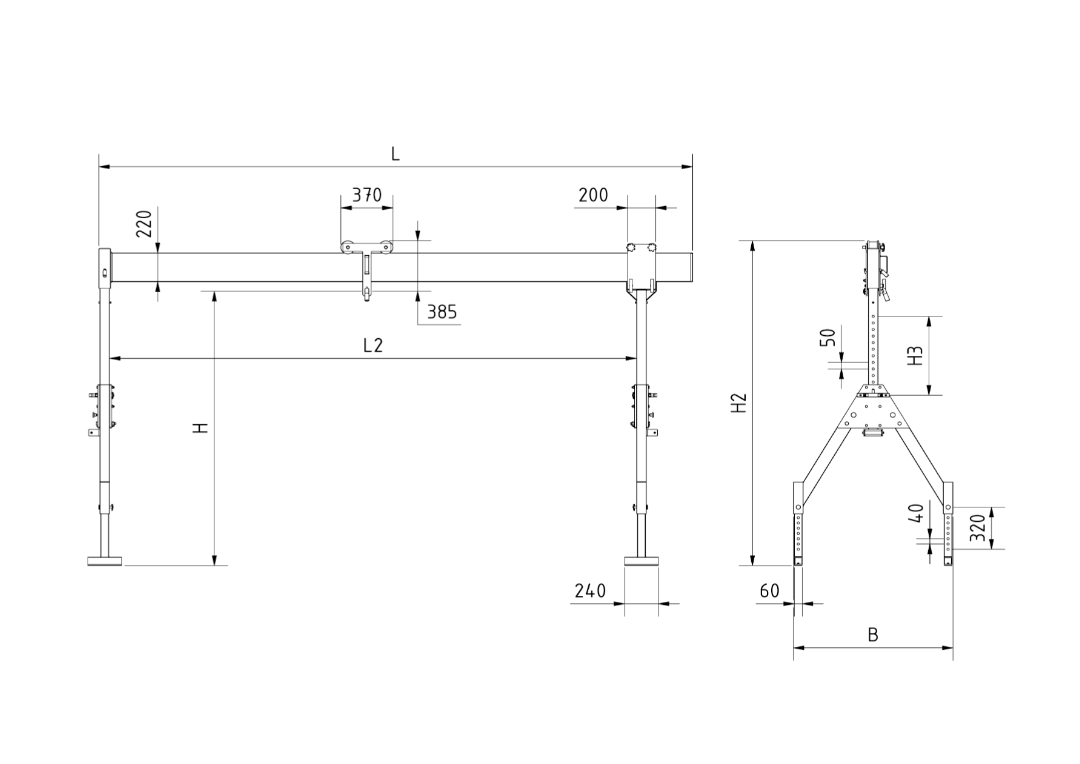

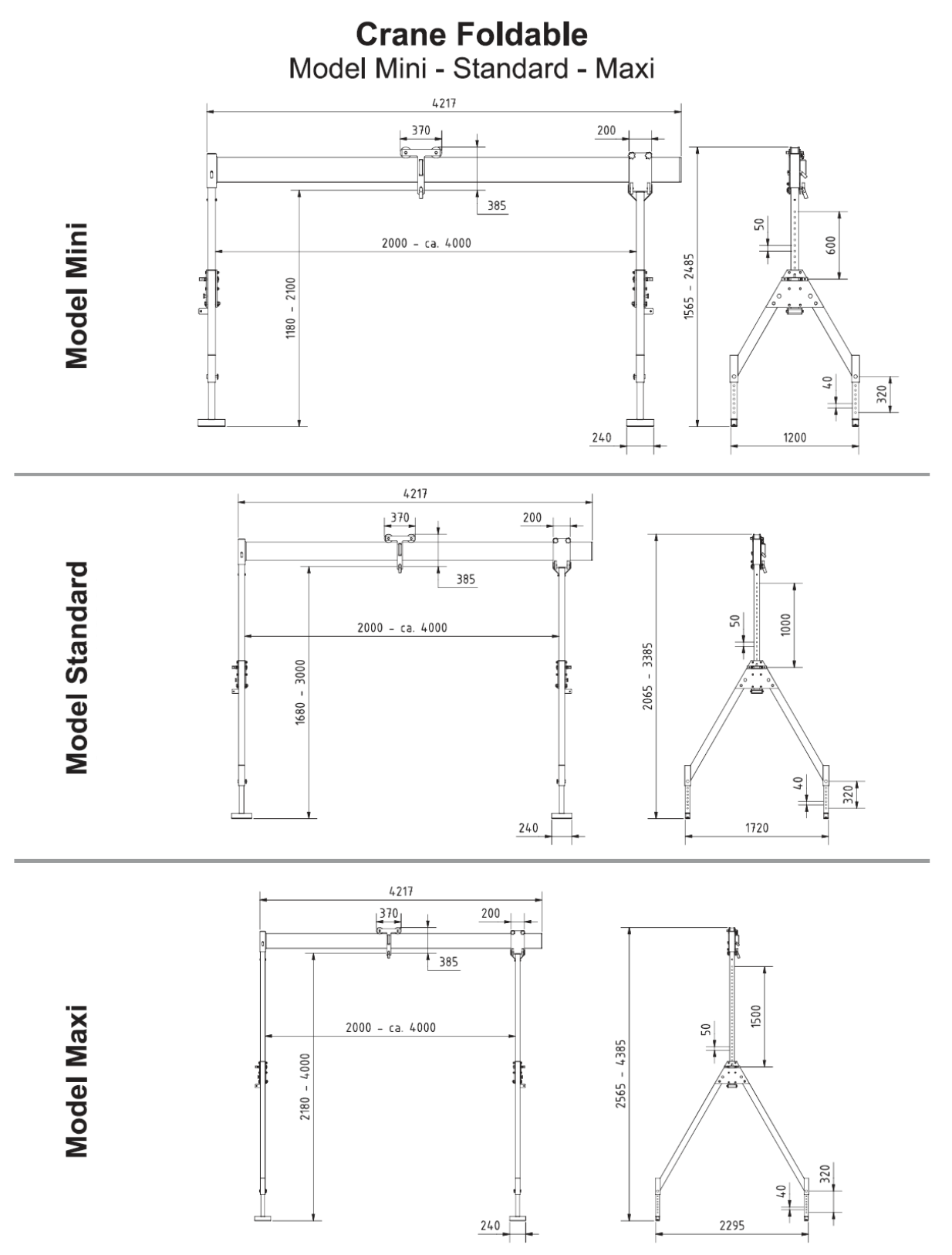

Dimensions
Specifications
| PRODUCT CODE | H | H2 | L | L2 | H3 | B |
|---|---|---|---|---|---|---|
| FE-MINI | 1180mm – 2100mm | 1565mm – 2485mm | 2217mm – 8097mm | 1000mm – 7850mm | 600mm | 1200mm |
| FE-STANDARD | 1680mm – 3000mm | 2065mm – 3385mm | 2217mm – 8097mm | 1000mm – 7850mm | 1000mm | 1720mm |
| FE-MAXI | 2180mm – 4000mm | 2565mm – 4385mm | 2217mm – 8097mm | 1000mm – 7850mm | 1500mm | 2295mm |

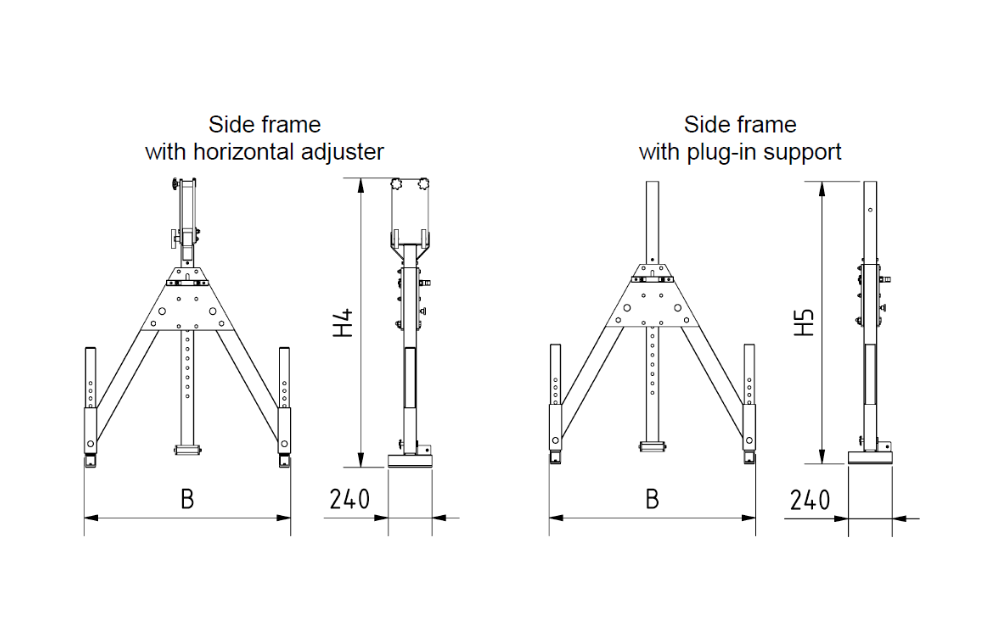

Dimensions
| PRODUCT CODE | B FOLDED | H5 | H5 FOLDED | H4 | H4 FOLDED | H4 WITHOUT FOLD |
|---|---|---|---|---|---|---|
| FE-MINI | 850mm | 1500mm | 1570mm | 1535mm | 1610mm | 1320mm |
| FE-STANDARD | 850mm | 2000mm | 2150mm | 2025mm | 2180mm | 1890mm |
| FE-MAXI | 850mm | 2500mm | 2730mm | 2525mm | 2775mm | 2485mm |
