Forklift Extension Slippers
Forklift Extension Slippers
- Brand: East West Engineering
- Capacity: 2.5t - 8.0t
Specifically designed to extend the length of standard fork tines, these robust and reliable Forklift Extension Slippers allow for safe and efficient handling of longer or oversized loads. Complying with AS 2359, each pair features a rating plate as well as secure toggle locking pins, and can be custom manufactured for capacities of up to 16 tonnes. The durable zinc finish ensures long lasting protection in demanding environments.
- Australian Standard: AS 2359
Features
Industries
Documents
Features
- Zinc finish
- Rating plate

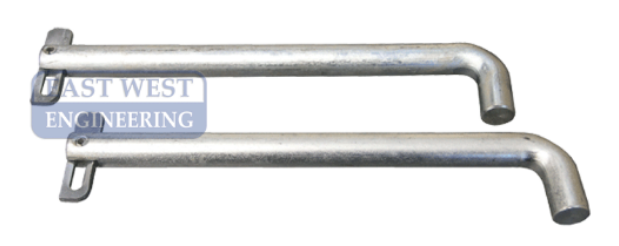

- Toggle locking pins
Industries
- Construction
- Infrastructure
- Manufacturing
- Warehousing
- Waste Management
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | LOAD CENTRE | MAX. TINE SIZE | MIN. TINE LENGTH | HCG | NET WEIGHT / PAIR |
|---|---|---|---|---|---|---|
| EWEFE116 | 2.5t | 500mm | 100mm x 45mm | 960mm | 694mm | 42kg |
| EWEFE118 | 2.5t | 500mm | 100mm x 45mm | 1068mm | 783mm | 46kg |
| EWEFE120 | 2.5t | 500mm | 100mm x 45mm | 1200mm | 893mm | 52kg |
| EWEFE124 | 2.5t | 500mm | 100mm x 45mm | 1440mm | 1092mm | 61kg |
| EWEFE216 | 4.0t | 500mm | 130mm x 50mm | 960mm | 733mm | 60kg |
| EWEFE218 | 4.0t | 500mm | 130mm x 50mm | 1068mm | 833mm | 66kg |
| EWEFE220 | 4.0t | 500mm | 130mm x 50mm | 1200mm | 915mm | 74kg |
| EWEFE224 | 4.0t | 500mm | 130mm x 50mm | 1440mm | 1132mm | 88kg |
| EWEFE318 | 5.0t | 500mm | 155mm x 55mm | 1068mm | 809mm | 77kg |
| EWEFE320 | 5.0t | 500mm | 155mm x 55mm | 1200mm | 919mm | 86kg |
| EWEFE324 | 5.0t | 500mm | 155mm x 55mm | 1440mm | 1118mm | 102kg |
| EWEFE330 | 5.0t | 500mm | 155mm x 55mm | 1800mm | 1418mm | 126kg |
| EWEFE418 | 8.0t | 600mm | 160mm x 65mm | 1068mm | 836mm | 133kg |
| EWEFE420 | 8.0t | 600mm | 160mm x 65mm | 1200mm | 922mm | 148kg |
| EWEFE424 | 8.0t | 600mm | 160mm x 65mm | 1440mm | 1136mm | 177kg |
| EWEFE430 | 8.0t | 600mm | 160mm x 65mm | 1800mm | 1436mm | 221kg |
Dimensions
| PRODUCT CODE | LENGTH |
|---|---|
| EWEFE116 | 1600mm |
| EWEFE118 | 1780mm |
| EWEFE120 | 2000mm |
| EWEFE124 | 2400mm |
| EWEFE216 | 1600mm |
| EWEFE218 | 1780mm |
| EWEFE220 | 2000mm |
| EWEFE224 | 2400mm |
| EWEFE318 | 1780mm |
| EWEFE320 | 2000mm |
| EWEFE324 | 2400mm |
| EWEFE330 | 3000mm |
| EWEFE418 | 1780mm |
| EWEFE420 | 2000mm |
| EWEFE424 | 2400mm |
| EWEFE430 | 3000mm |
