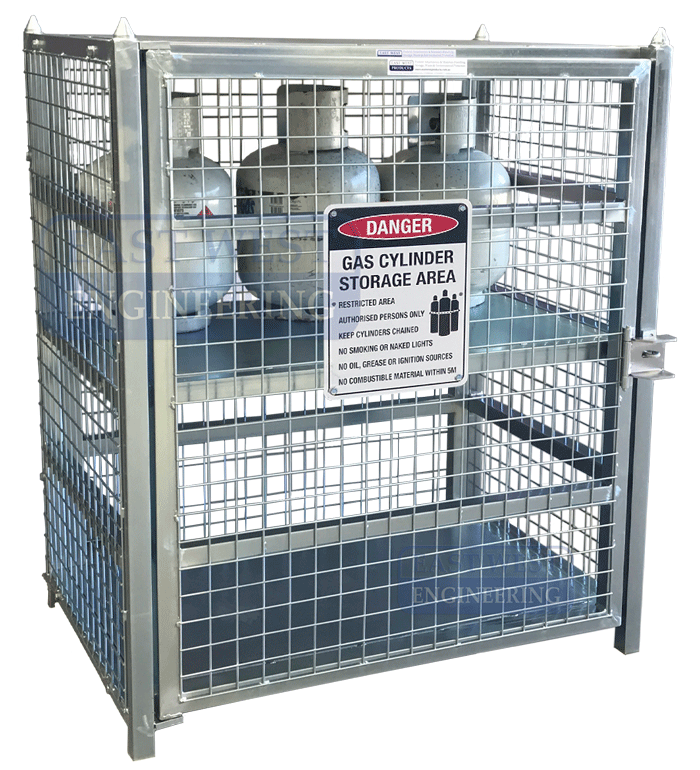

Gas Cylinder Storage Cage
Gas Cylinder Storage Cage
- Brand: East West Engineering
This versatile, heavy duty Gas Cylinder Storage Cage provides a flexible storage solution for BBQ and forklift gas cylinders. Featuring a bolted centre shelf and vertical supports, tamper-resistant lock protection, anti-tamper hinges, high-visibility mesh sides with protective bump rails, smooth sheet metal shelves for easy loading, and a weather-protective roof, this gas cylinder storage cage is also suitable for other storage requirements, where easy access and security are required. Forklift provisions allow for convenient handling, and the unit can be stacked three high when empty or two high when loaded.
- Australian Standard: AS 4332
Features
Industries
Documents
Features
- Zinc finish
- Stores up to 12 x 9kg BBQ gas bottles
- Stores up to 6 x 18kg forklift gas bottles
- Fast and easy assembly (supplied as flatpack)
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | CAPACITY WITH MID SHELF | CAPACITY WITHOUT MID SHELF | NET WEIGHT |
|---|---|---|---|
| EWESGB129 | 12 x 9kg bottle | 6 x 18kg bottle | 106kg |
| EWESGB129A | 12 x 9kg bottle | 6 x 18kg bottle | 106kg |
Dimensions
| PRODUCT CODE | WIDTH | DEPTH | HEIGHT |
|---|---|---|---|
| EWESGB129 | 1080mm | 760mm | 1285mm |
| EWESGB129A | 1080mm | 760mm | 1285mm |
