Grab for Prefabricated Concrete
Grab for Prefabricated Concrete
- Brand: Probst
- Capacity: 0.9t - 5.0t

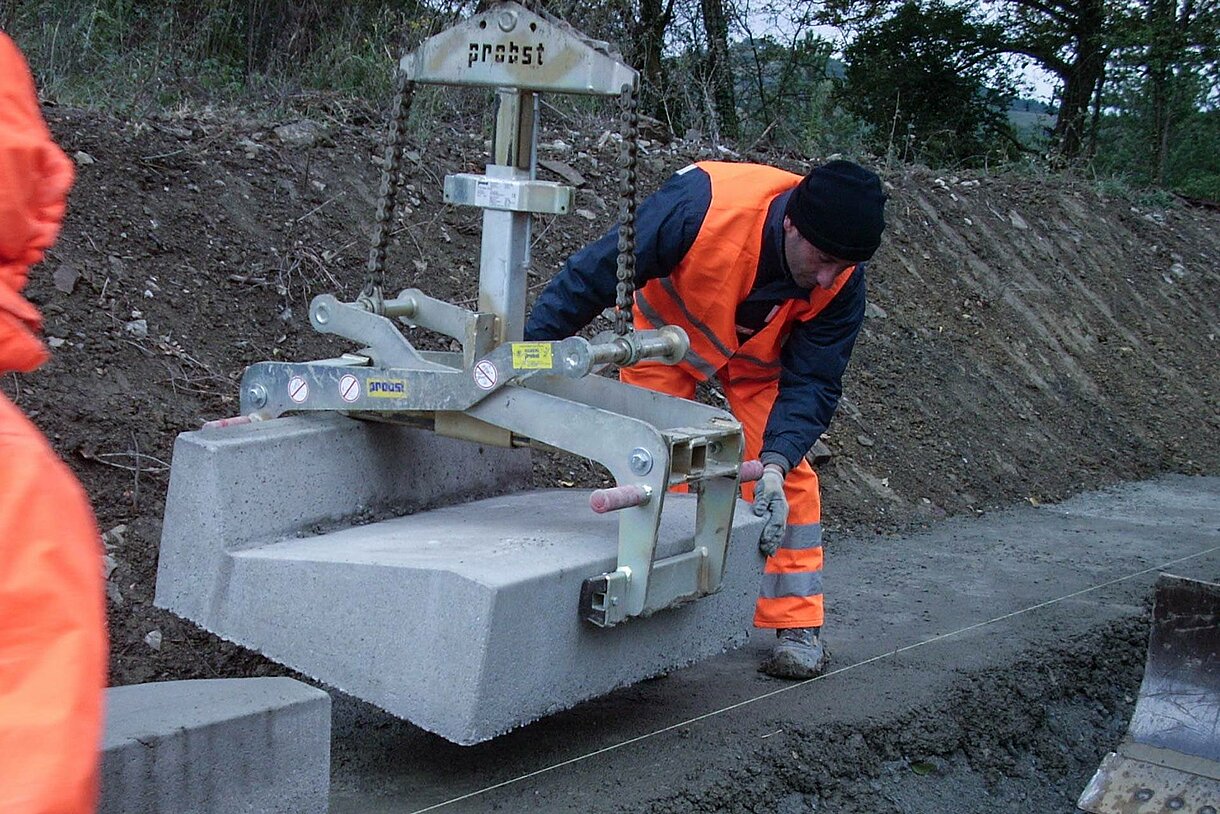

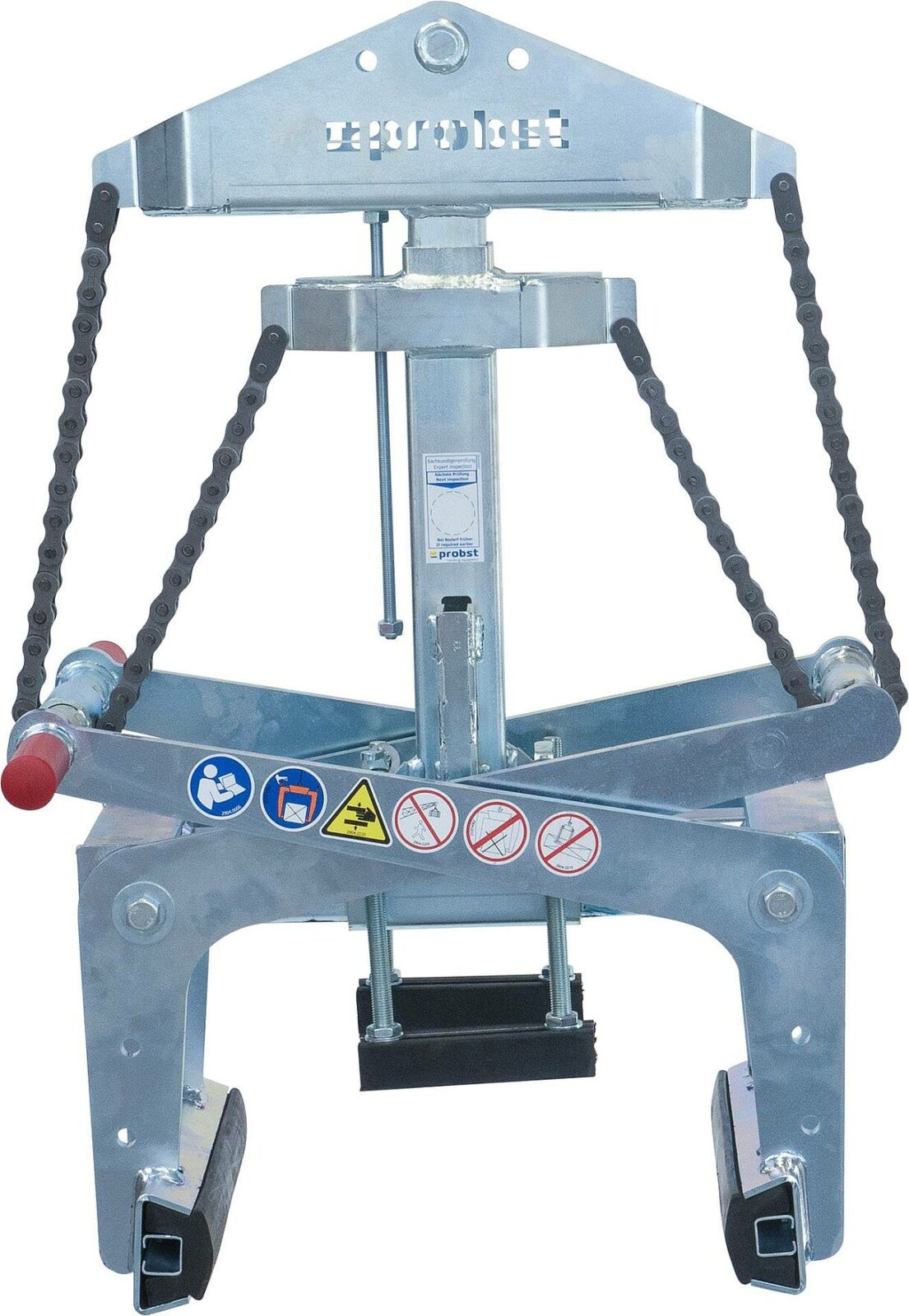

The Probst range of Grabs for Prefabricated Concrete Products are ideal for the precise handling of a vast array of precast concrete components, including granite kerbs, concave kerb stones and precast elements. Complete with a suspension bolt for ease of attachment to cranes or lifting devices, the FTZ range of grabs ensures secure handling of heavy loads. With a lifting capacity of up to 5t, a wide grip opening of 0mm to 1250mm, plus integrated handles to guide the grab, the Probst Grabs for Prefabricated Concrete products offer maximum operator safety and efficiency.
Features
Industries
Documents
Features
- Adjustable grip width.
- Galvanised surface protection.
- Interchangeable rubber grippers.
- Suspension bolt for lifting device.
- Automatic release for fully automatic switch-over from full to empty.
Industries
- Civil
- Councils
- Construction
- Landscaping
Documents
- HES Catalogue
- FTZ Grab for Prefabricated Concrete Video
- FTZ-I Grab for Prefabricated Concrete
- FTZ-UNI-15 Grab for Prefabricated Concrete
- FTZ-MAXI-25 Grab for Prefabricated Concrete
- FTZ-MAXI-50 Grab for Prefabricated Concrete
- FTZ-BB Grab for Prefabricated Concrete
- FTZ-UNI-25 Grab for Prefabricated Concrete
- FTZ-UNI-50 Grab for Prefabricated Concrete
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. LIFTING | GRIPPING RANGE | GRIPPER LENGTH | INSIDE HEIGHT | NET WEIGHT |
|---|---|---|---|---|---|
| TL-FTZI-53100120 | 0.9t | 50mm – 520mm | 420mm | 170mm | 55kg |
| TL-FTZBB-53100202 | 0.9t | 50mm – 480mm | 420mm | 290mm | 60kg |
| TL-FTZUNI15-53100256 | 1.5t | 0mm – 750mm | 420mm | 255mm | 88kg |
| TL-FTZUNI25-53100313 | 2.5t | 0mm – 750mm | 420mm | 255mm | 119kg |
| TL-FTZMAXI25-53100344 | 2.5t | 200mm – 1200mm | 420mm | 255mm | 132kg |
| TL-FTZUNI50-53100362 | 5.0t | 0mm – 850mm | 720mm | 200mm | 245kg |
| TL-FTZMAXI50-53100363 | 5.0t | 400mm – 1250mm | 720mm | 240mm | 260kg |
