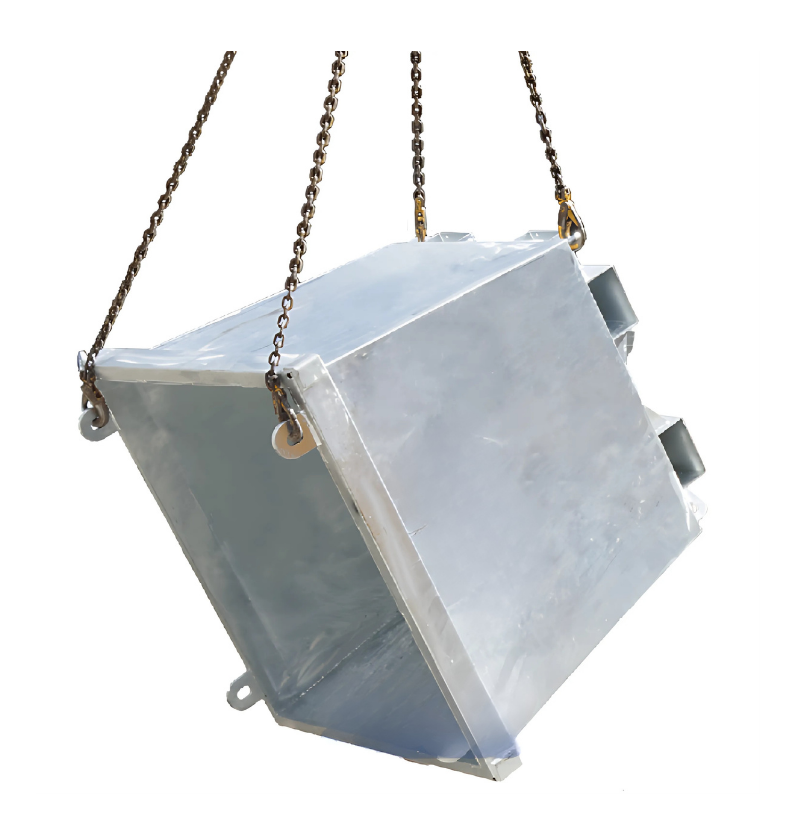

Heavy Duty Crane Bin
Heavy Duty Crane Bin
- Brand: East West Engineering
- Capacity: 2.0t - 5.0t
Compatible for use with both forklifts and overhead cranes, this versatile and robust Heavy Duty Crane Bin is ideal for the collection, transportation, and disposal of site waste in demanding environments such as manufacturing and construction. Featuring 4-way fork pockets and robust crane lugs for both lifting and upending, this heavy duty crane bin offers efficient handling and safe operation. When not in use, multiple bins can be stacked to optimise space during storage and transportation.
Features
Industries
Documents
Features
- Galvanised finish
- Optional wheel kit available
Industries
- Construction
- Civil
- Infrastructure
- Manufacturing
- Warehouse
- Waste Management
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | VOLUME CAPACITY | POCKET SIZE – L | POCKET SIZE – W | POCKET CENTRES | NET WEIGHT |
|---|---|---|---|---|---|---|
| EWEWCB9X11 | 2.0t | 0.85cu.m | 160mm x 95mm | 160mm x 95mm | 450mm | 162kg |
| EWEWCB9X17 | 2.0t | 1.3cu.m | 160mm x 95mm | 160mm x 95mm | 450mm | 240kg |
| EWEWCB9X23 | 2.0t | 2.5cu.m | 160mm x 95mm | 160mm x 95mm | 790mm | 335kg |
| EWEWCH23X9 | 5.0t | 2.4cu.m | 160mm x 95mm | 160mm x 95mm | 790mm | 585kg |
Dimensions
| PRODUCT CODE | LENGTH | WIDTH | HEIGHT |
|---|---|---|---|
| EWEWCB9X11 | 1156mm | 1156mm | 1100mm |
| EWEWCB9X17 | 1716mm | 1156mm | 1100mm |
| EWEWCB9X23 | 2316mm | 1516mm | 1100mm |
| EWEWCH23X9 | 2300mm | 1500mm | 1092mm |
