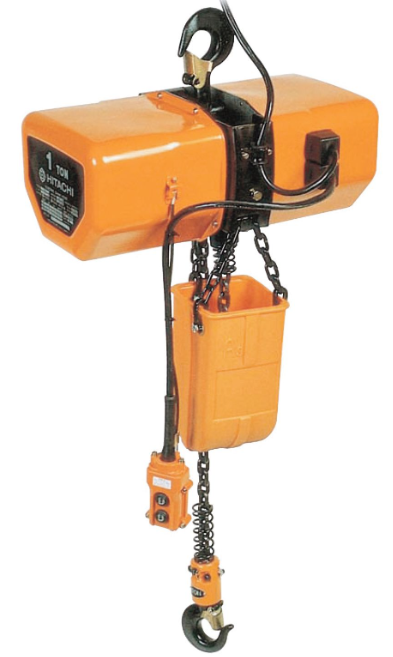

Hitachi Electric Chain Hoist
- Brand: Hitachi
- Capacity: 0.25t to 15.0t
Suitable for straight or curved beam applications, this electric chain hoist features a fully enclosed design that ensures the entire mechanism, including the motor, dual brake system, gears, rotating parts, and electrical system, is encased allowing for effective operation even under severe conditions. For applications with limited headroom, special low headroom hoist and trolley configurations are available.
- Australian Standard: AS1418
Features
Industries
Documents
Features
- Overload limiter
- Motor thermal protection
- Full current and shunt limit switches
- Electro-magnetic, self adjusting disc type brake
Industries
- Automotive
- Civil
- Construction
- Engineering
- Entertainment
- Lifts/Elevators
- Marine
- Ports
Documents
Specifications
Dimensions
Specifications
PRODUCT CODE | W.L.L. | PHASE | SPEED | MOTOR | HEADROOM | NET WEIGHT |
---|---|---|---|---|---|---|
Three Phase / Single Speed | ||||||
PHHEH010 | 0.25t | Three Phase | 10 m/min | 0.45kW | 450mm | 28kg |
PHHEH050 | 0.50t | Three Phase | 7.2 m/min | 0.63kW | 450mm | 31kg |
PHHEH100 | 1.00t | Three Phase | 4.6 m/min | 0.80kW | 530mm | 37kg |
PHHEH200 | 2.00t | Three Phase | 2.3 m/min | 0.80kW | 645mm | 49kg |
PHHEH110 | 1.00t | Three Phase | 7.1 m/min | 1.30kW | 535mm | 42kg |
PHHEH210 | 2.00t | Three Phase | 6.8 m/min | 2.40kW | 660mm | 80kg |
PHHEH300 | 3.00t | Three Phase | 4.1 m/min | 2.40kW | 820mm | 99kg |
PHHEH500 | 5.00t | Three Phase | 2.8 m/min | 2.50kW | 1020mm | 121kg |
Three Phase / Two Speed | ||||||
PHHEH020 | 0.25t | Three Phase | 7.2 / 1.8 m/min | 0.32kW / 0.08kW | 450mm | 33kg |
PHHEH060 | 0.50t | Three Phase | 7.2 / 1.8 m/min | 0.63kW / 0.16kW | 450mm | 36kg |
PHHEH120 | 1.00t | Three Phase | 4.6 / 1.2 m/min | 0.80kW / 0.20kW | 530mm | 42kg |
PHHEH220 | 2.00t | Three Phase | 2.3 / 0.6 m/min | 0.80kW / 0.20kW | 645mm | 54kg |
PHHEH230 | 2.00t | Three Phase | 6.8 / 1.7 m/min | 2.40kW / 0.60kW | 660mm | 96kg |
PHHEH330 | 3.00t | Three Phase | 4.0 / 1.0 m/min | 2.40kW / 0.60kW | 820mm | 112kg |
PHHEH530 | 5.00t | Three Phase | 2.8 / 0.7 m/min | 2.40kW / 0.60kW | 1020mm | 146kg |
Single Phase / Single Speed | ||||||
PHHEH900 | 0.25t | Single Phase | 5 m/min | 0.25kW | 450mm | 34kg |
PHHEH907 | 0.50t | Single Phase | 3.6 m/min | 0.32kW | 450mm | 34kg |
PHHEH911 | 1.00t | Single Phase | 2.3 m/min | 0.40kW | 530mm | 39kg |
PHHEH920 | 2.00t | Single Phase | 1.1 m/min | 0.40kW | 645mm | 51kg |
