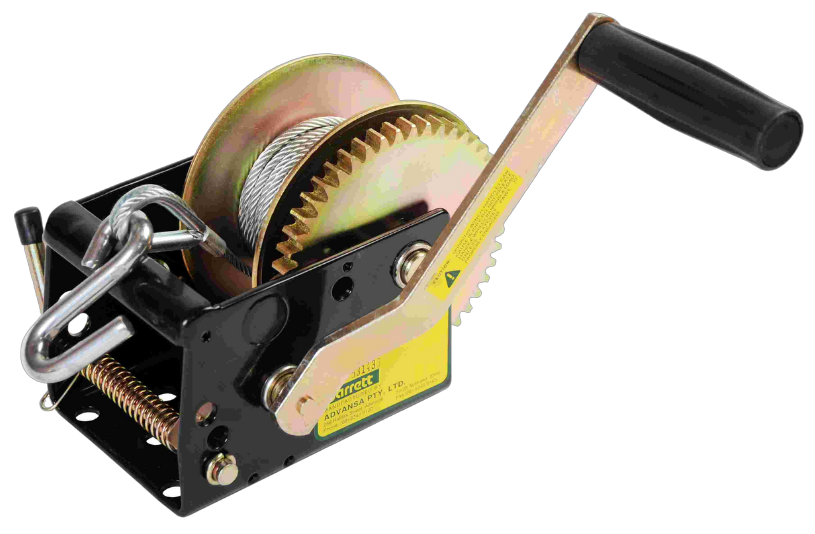

Hand Winch
Hand Winch
- Brand: Jarrett
- Capacity: 0.5t to 0.8t
Durable and easy to use, this reliable hand winch is suitable for lowering and pulling loads within its rated capacity. With a heavy duty 4mm steel body, machined gears and corrosion resistant components, this versatile winch is suitable for a variety of applications.
- Australian Standard: AS1418
Features
Industries
Documents
Features
- Steel bushes
- Machined gears
- Corrosion resistant finish
- Heavy duty 4mm winch body
Industries
- Civil
- Construction
- Engineering
- Infrastructure
- Manufacturing
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | PULL CAPACITY | GEAR RATIO | CABLE/WEB CAPACITY | CABLE/WEB LENGTH | EFFORT ON HANDLE |
|---|---|---|---|---|---|
| JAF10212 | 0.5t | 3:1 | Cable – 20m x 4mm | Cable – 6m x 4mm galv | 20kg |
| JAF10217 | 0.7t | 5:1 / 1:1 | Cable – 15m x 5mm | Cable – 6m x 5mm galv | 25kg |
| JAF10204 | 0.7t | 5:1 | Web – 9m | Web – 6m | 25kg |
| JAF10950 | 0.8t | 10:1 / 5:1 / 1:1 | Cable – 15m x 5mm | Cable – 7.5m x 5mm galv | 18kg |
| JAF10952 | 0.8t | 10:1 / 5:1 / 1:1 | Web – 9m | Web – 7.5m | 18kg |
