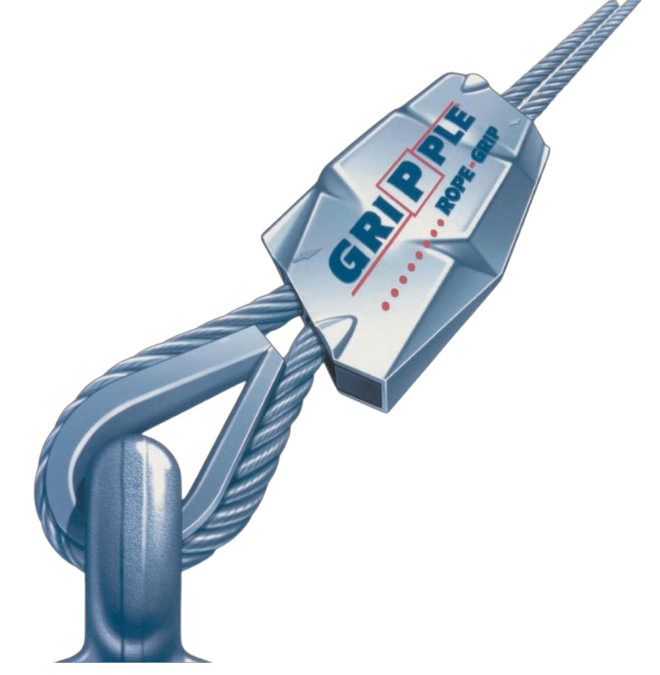

Lockable Gripple for Wire Rope
Lockable Gripple for Wire Rope
- Brand: Gripples
Robust and efficient, this lockable Gripple for wire ropes, is an efficient way to terminate wire rope when bracing and suspending static and dynamic loads, joining wire ropes together and tensioning wire ropes. This single-use fastener has additional 'locking screws' to secure the wedge in place and allows minimal loads to be applied. Constructed from high quality steel, this Gripple is durable, easy to use, and can be installed quickly and easily.
Features
Industries
Documents
Features
- Single use fastener
- Additional locking screws
- Easy to use locking mechanism
- Constructed from steel and aluminium
Industries
- Civil
- Construction
- Engineering
- Infrastructure
- Manufacturing
- Marine
- Ports
Specifications
Dimensions
Specifications
| PRODUCT CODE | SIZE | W.L.L. |
|---|---|---|
| GRL2 | 2mm | 0.08t |
| GRL3 | 3mm | 0.15t |
| GRL4 | 4mm | 0.22t |
| GRL5 | 5mm | 0.30t |
| GRL6 | 6mm | 0.50t |
| GRL8 | 8mm | 1.00t |
