Long Telescopic Jib

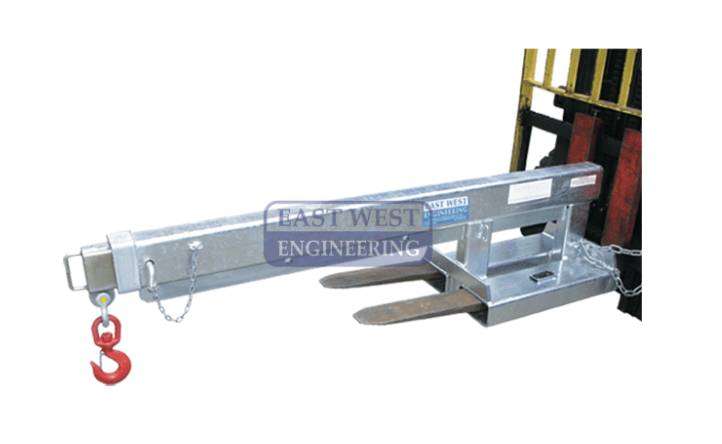

Long Telescopic Jib
- Brand: East West Engineering
- Capacity: 4.75t
This robust and versatile long telescopic jib provides a cost effective solution for general purpose lifting and maintenance requirements. Offering secure and efficient operation with variable reach, this long telescopic jib features a slip-on forklift attachment with safety chain for quick connection, a swivel hook and shackle, and has a zinc finish for protection against rust and corrosion.
Features
Industries
Documents
Features
- Zinc finish
- Slip on attachment and safety chain
- Overall length of 2.1m when retracted
- Overall length of 3.5m when fully extended
- Supplied standard with a safety swivel hook and shackle
Industries
- Construction
- Cranes
- Engineering
- Infrastructure
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
- Warehouse
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | LOAD CENTRE | FORK POCKET SIZE | FORK POCKET CENTRES | NET WEIGHT |
|---|---|---|---|---|---|
| EWEFJCL50 | 4.75t | 935mm | 185mm x 75mm | 275mm | 170kg |
Dimensions
| POSITION | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| EXTENSION | 935mm | 1395mm | 1855mm | 2000mm | 2380mm | 2760mm | 3140mm | 3520mm |
| W.L.L. | 4.75t | 4.275t | 3.80t | 3.30t | 2.50t | 1.30t | 0.76t | 0.48t |
