Multi Position Spreader Bar
Multi Position Spreader Bar
- Brand: East West Engineering
- Capacity: 20t / 48t / 100t

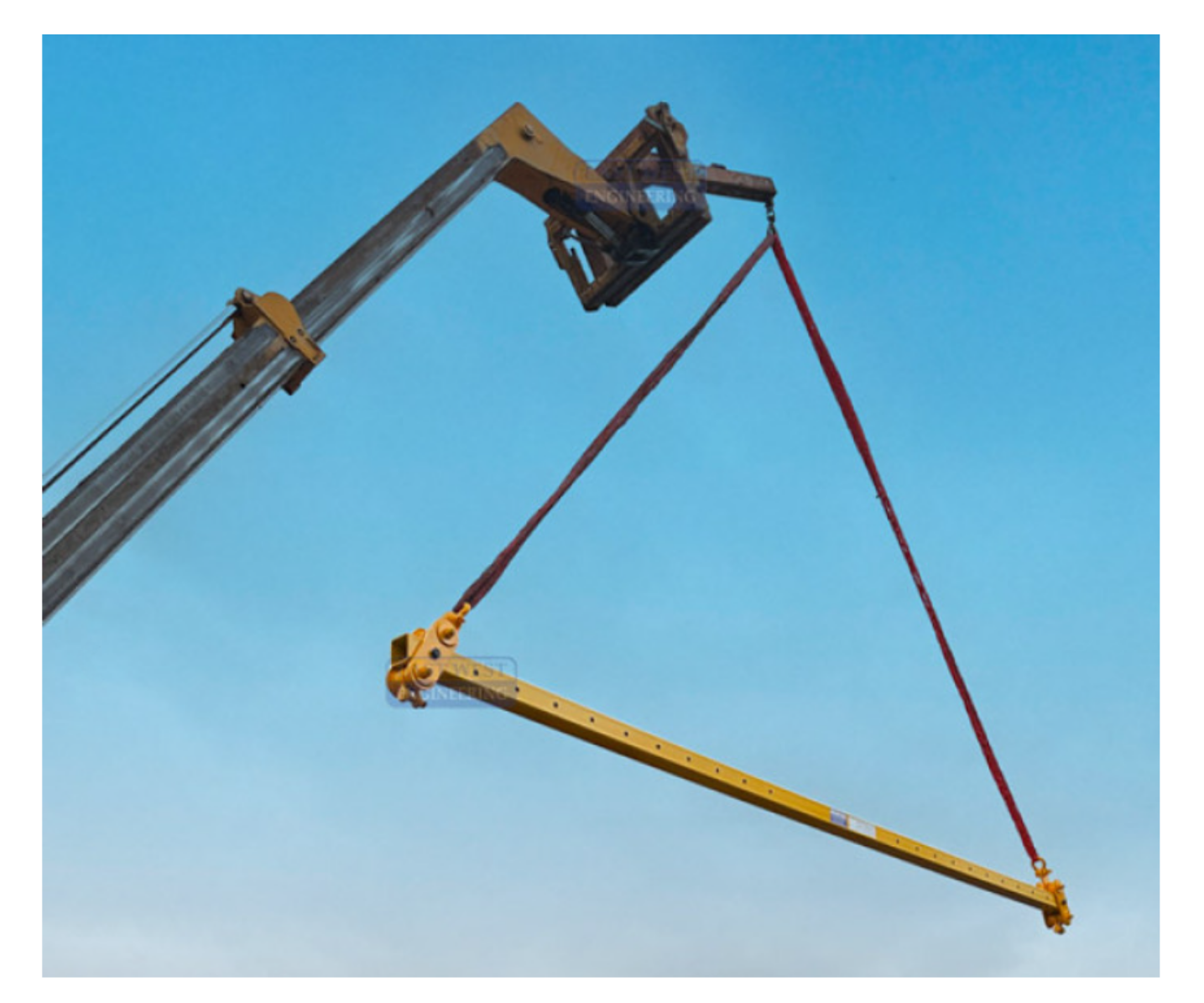

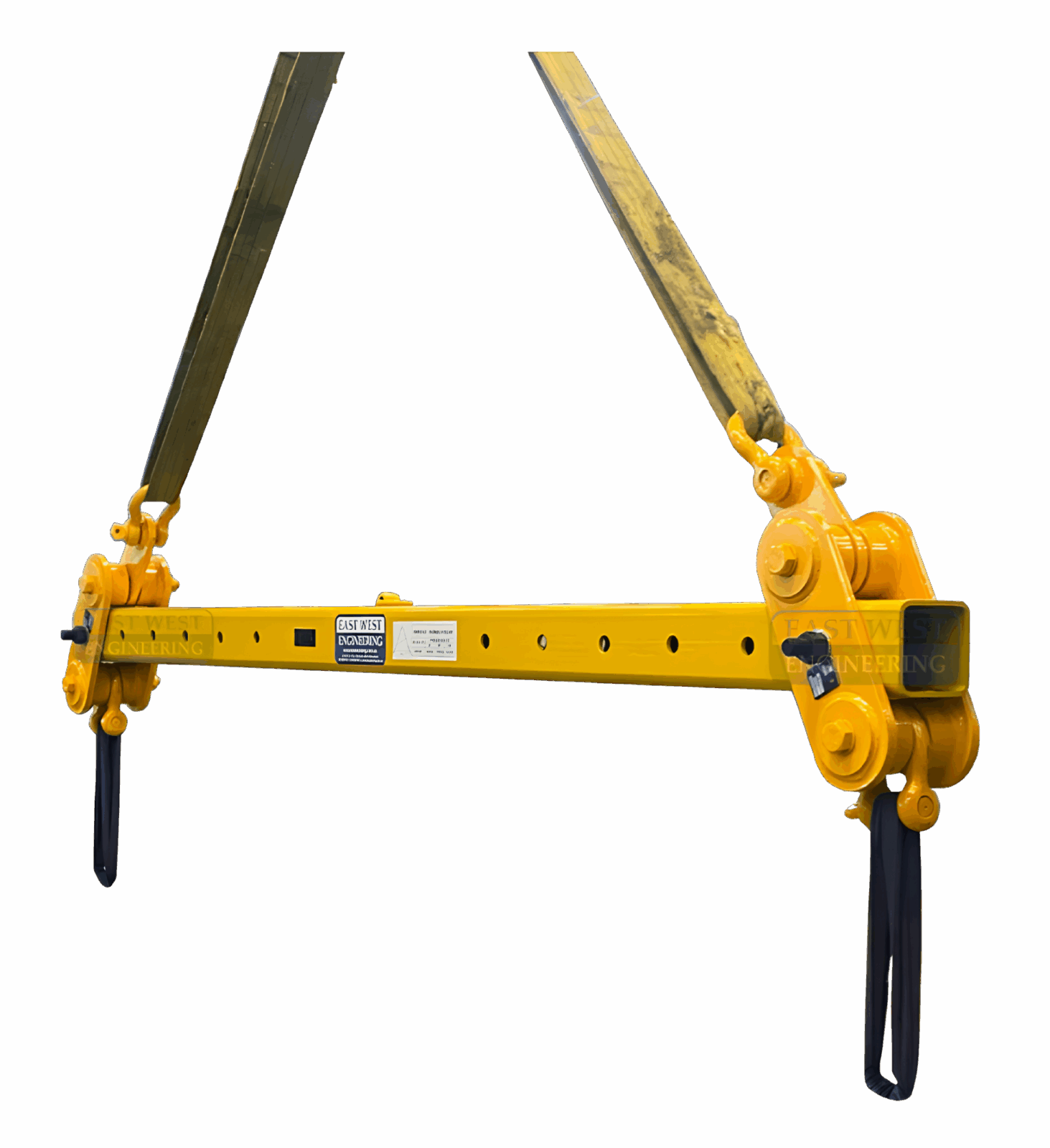

Featuring multiple lifting positions to suit various load sizes, this Multi Position Spreader Bar is engineered to support and stabilise heavy loads during crane lifting operations, minimising lateral forces and improve load control when transporting and positioning materials. Available as standard in 20t, 48t and 100t capacities with bar lengths of 3.3m, 6m or 8m, complete with shackles for connection. Alternative capacities and lengths are available on request.
Features
Industries
Documents
Features
- Enamel paint finish
- Supplied with shackles
- 3 bar lengths available
- Multiple lifting positions
Industries
- Construction
- Cranes
- Engineering
- Infrastructure
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | # LIFT POSITIONS | MIN. LIFT CENTRE | MAX. LIFT CENTRE | NET WEIGHT |
|---|---|---|---|---|---|
| EWECSMP20X3.3 | 20.0t | 6 | 1000mm | 3000mm | 261kg |
| EWECSMP20X6 | 20.0t | 8 | 1500mm | 5700mm | 359kg |
| EWECSMP20X8 | 20.0t | 11 | 1700mm | 7700mm | 434kg |
| EWECSMP48X3.3 | 48.0t | 6 | 1000mm | 3000mm | 520kg |
| EWECSMP48X6 | 48.0t | 8 | 1500mm | 5700mm | 658kg |
| EWECSMP48X8 | 48.0t | 11 | 1700mm | 7700mm | 760kg |
| EWECSMP100X3.3 | 100.0t | 6 | 1000mm | 3000mm | 1235kg |
| EWECSMP100X6 | 100.0t | 8 | 1500mm | 5700mm | 1525kg |
| EWECSMP100X8 | 100.0t | 11 | 1700mm | 7700mm | 1740kg |
Dimensions
| PRODUCT CODE | LENGTH |
|---|---|
| EWECSMP20X3.3 | 3300mm |
| EWECSMP20X6 | 6000mm |
| EWECSMP20X8 | 8000mm |
| EWECSMP48X3.3 | 3300mm |
| EWECSMP48X6 | 6000mm |
| EWECSMP48X8 | 8000mm |
| EWECSMP100X3.3 | 3300mm |
| EWECSMP100X6 | 6000mm |
| EWECSMP100X8 | 8000mm |
