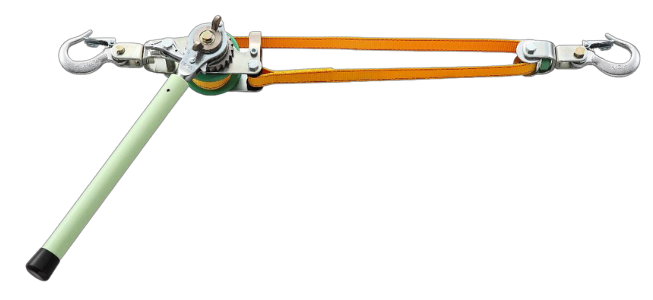

N-1000 Ratchet Puller – Belt Type
N-1000 Ratchet Puller – Belt Type
- Brand: Nagaki
- Capacity: 1.0t
Versatile and durable, the N-1000 Ratchet Puller features a large powerful ratchet lever that provides 10kN of pulling force, minimising time and effort required by the operator. With a heavy duty ratchet mechanism, full 360 degree rotating handle and forward/reverse load holding mechanism, the N-1000 Ratchet Puller combines ease of use with Japanese quality. Optional safety hook available.
Features
Industries
Documents
Features
- Ratchet mechanism
- 360 degrees rotating handle
- Lightweight aluminium housing
- Forward/reverse load holding handle
Industries
- Energy
- Lifts/Elevators
- Railways
- Telecommunications
- Utilities
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | S.W.L. | STRAP SIZE | OVERALL LENGTH | LEVER LENGTH | NET WEIGHT |
|---|---|---|---|---|---|
| NAGAKI-52009 | 1.0t (10kN) | 2 x 35mm | 420mm – 1270mm | 400mm | 3.2kg |
