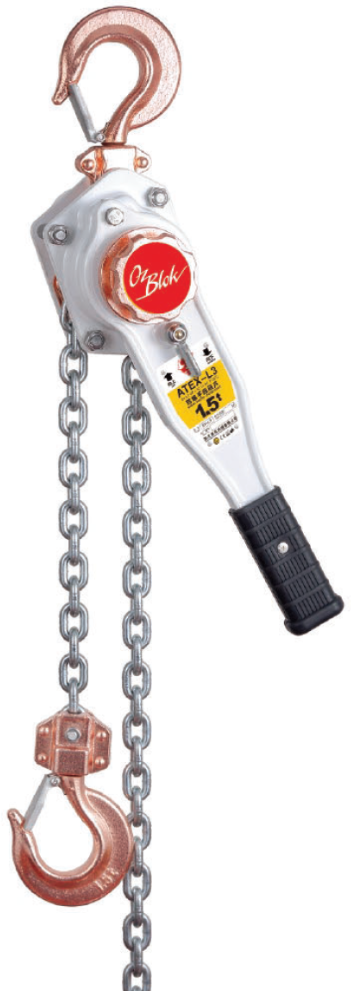

Spark Resistant Lever Hoist
Spark Resistant Lever Hoist
- Brand: OzBlok
- Capacity: 0.5t to 9.0t
Robust and versatile, this lever hoist is designed to be used in potentially explosive or dusty environments. With anti-spark coating and excellent corrosion resistance, this spark proof lever hoist provides optimal user safety when lifting heavy loads in subsea and offshore applications. Optional stainless steel lifting chain, special marine storage chain bag and overload limiter available.
- Australian Standard: AS1418
Features
Industries
Documents
Features
- ATEX certified
- Anti-spark coating
- Protected brake device
- Corrosion resistant construction
Industries
- Marine/Oil/Gas
- Offshore
- Subsea
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | STANDARD LIFT | FALLS OF CHAIN | HAND EFFORT TO LIFT W.L.L. | LOAD CHAIN DIAMETER | NET WEIGHT |
|---|---|---|---|---|---|---|
| CBOZEXL3005-2.5 | 0.5t | 1.5m | 1 | 256N | 5mm x 15mm | 5.5kg |
| CBOZEXL3010-2.5 | 1.0t | 1.5m | 1 | 250N | 6mm x 18mm | 7.9kg |
| CBOZEXL3015-2.5 | 1.5t | 1.5m | 1 | 373N | 7mm x 21mm | 10.9kg |
| CBOZEXL3020-2.5 | 3.0t | 1.5m | 1 | 395N | 10mm x 30mm | 20.2kg |
| CBOZEXL3030-3 | 6.0t | 1.5m | 2 | 398N | 10mm x 30mm | 35.0kg |
| CBOZEXL3050-3 | 9.0t | 1.5m | 3 | 400N | 10mm x 30mm | 55.0kg |

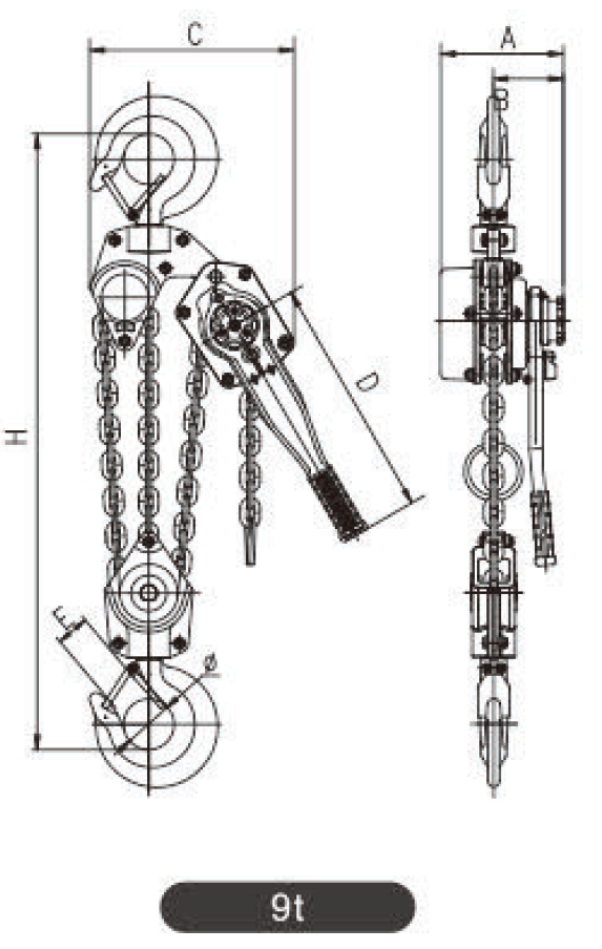

Dimensions
| PRODUCT CODE | A | B | C | Ø | E | Hmin |
|---|---|---|---|---|---|---|
| CBOZEXL3005-2.5 | 143mm | 90.5mm | 118mm | 31.5mm | 23.5mm | 330mm |
| CBOZEXL3010-2.5 | 157mm | 94.0mm | 140mm | 37.5mm | 26.0mm | 365mm |
| CBOZEXL3015-2.5 | 178mm | 104.0mm | 145mm | 42.5mm | 31.0mm | 400mm |
| CBOZEXL3020-2.5 | 206mm | 118.0mm | 199mm | 50.0mm | 37.0mm | 520mm |
| CBOZEXL3030-3 | 206mm | 118.0mm | 230mm | 65.0mm | 46.0mm | 595mm |
| CBOZEXL3050-3 | 206mm | 118.0mm | 342mm | 85.0mm | 55.0mm | 800mm |
