Telescopic Jib
Telescopic Jib
- Brand: East West Engineering
- Capacity: 2.5t

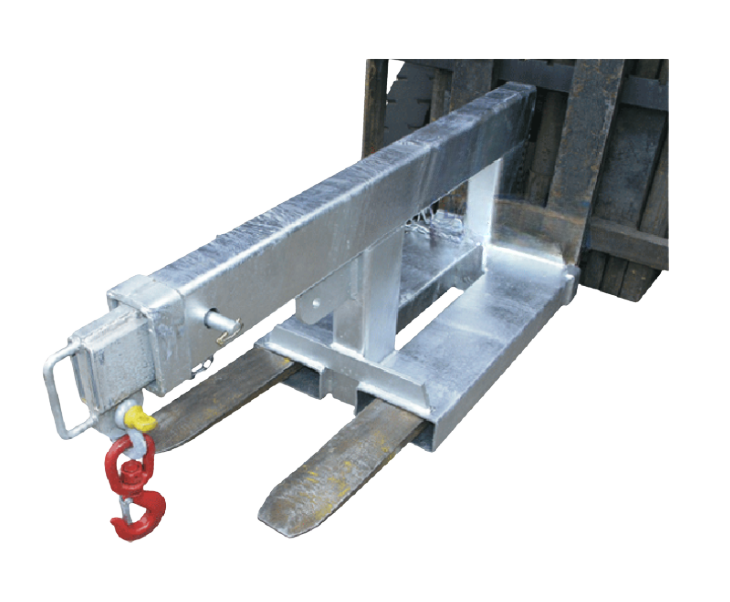

Offering variable reach for diverse lifting applications, this robust and versatile telescopic jib provides a cost effective solution for material handling, particularly in restricted spaces. With a slip attachment and safety hook and shackle, this telescopic jib offers secure and efficient operation, with exceptional performance.
Features
Industries
Documents
Features
- Zinc finish
- Slip on attachment and safety chain
- Overall length of 1.3m when retracted
- Overall length of 1.96m when fully extended
- Supplied standard with a safety swivel hook and shackle
Industries
- Construction
- Cranes
- Engineering
- Infrastructure
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
- Warehouse
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | LOAD CENTRE | FORK POCKET SIZE | FORK POCKET CENTRES | NET WEIGHT |
|---|---|---|---|---|---|
| EWEFJCS25 | 2.5t | 790mm | 185mm x 65mm | 275mm | 100kg |

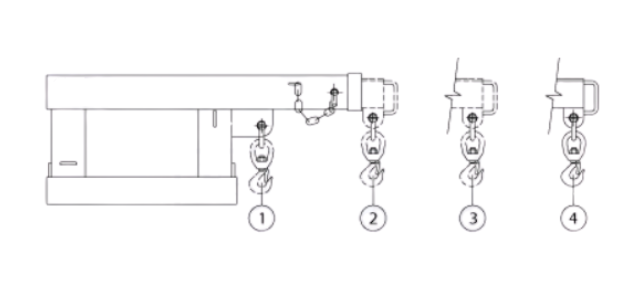

Dimensions
| POSITION | 1 | 2 | 3 | 4 |
|---|---|---|---|---|
| EXTENSION | 790mm | 1200mm | 1580mm | 1960mm |
| W.L.L. | 2.50t | 1.20t | 0.90t | 0.75t |
