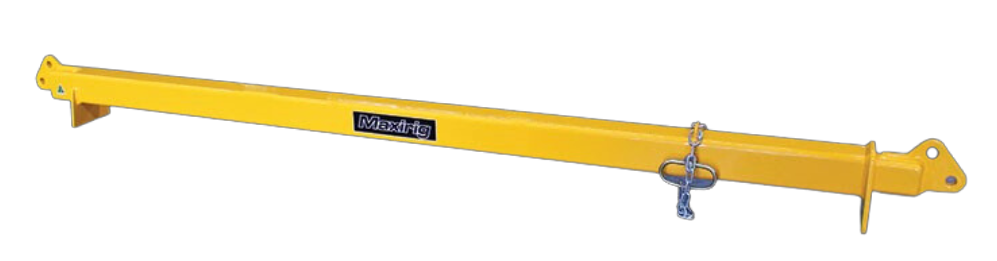

Telescopic Spreader Bar 1.5t x 3.0m
Telescopic Spreader Bar 1.5t x 3.0m
- Brand: Maxirig
- Capacity: 1.5t

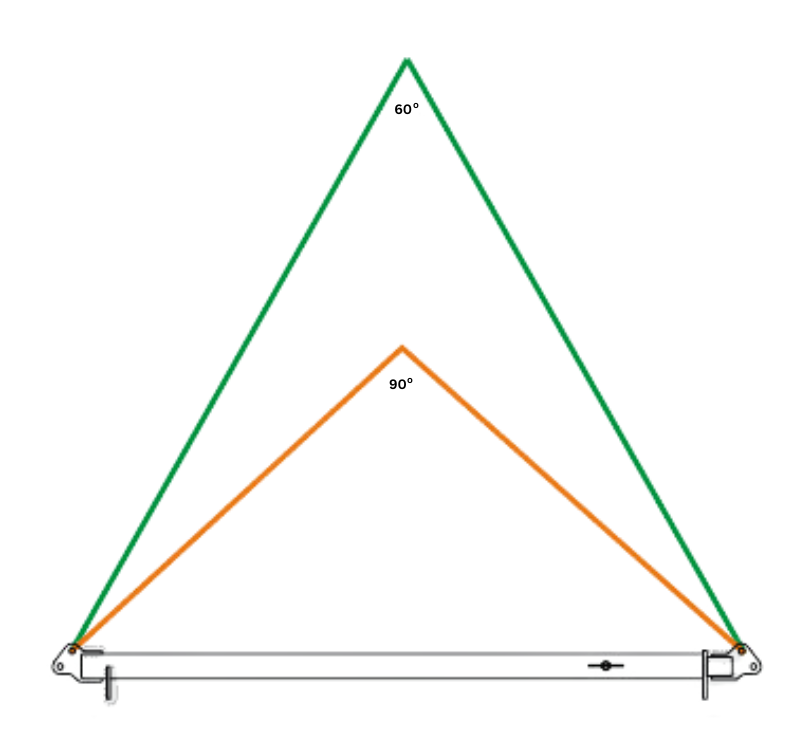

Durable and long-lasting, this versatile and reliable 1.5t telescopic spreader bar is ideal for a range of heavy lifting applications. With a maximum span of 3 metres, this spreader bar is designed to function in the 60° and 90° positions. It can also be used as a lifting beam with top lifting lugs and lower load lugs to suit 1.5t Grade 'S' safety bow shackles. Ideal for mobile crane operators, the beam is easy to use and can be adjusted to fit the specific needs of the lift. Supplied with proof load test certificate and MPI weld inspection report.
- Australian Standard: AS4991
Features
Industries
Documents
Features
- Yellow powder coated finish
- Constructed from heavy duty steel
- Top lifting lugs to suit 1.5t Grade ‘S’ safety bow shackle
- Lower load lug to suit 1.5t Grade ‘S’ safety bow shackle
Industries
- Construction
- Cranes
- Engineering
- Infrastructure
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Specifications
Dimensions
Specifications
| PRODUCT CODE | SPAN | W.L.L. 60° | W.L.L. 90° | SLING LENGTH 60° | SLING LENGTH 90° | APPROX HEADROOM 60° | APPROX HEADROOM 90° | TARE WEIGHT |
|---|---|---|---|---|---|---|---|---|
| MRTSB101518 | 1.8m | 1.5t | 1.5t | 1.8m | 1.3m | 1.6m | 0.9m | 25kg |
| MRTSB101519 | 1.9m | 1.5t | 1.5t | 1.9m | 1.3m | 1.7m | 1.0m | 25kg |
| MRTSB101520 | 2.0m | 1.5t | 1.5t | 2.0m | 1.4m | 1.7m | 1.0m | 25kg |
| MRTSB101521 | 2.1m | 1.5t | 1.5t | 2.1m | 1.5m | 1.8m | 1.1m | 25kg |
| MRTSB101522 | 2.2m | 1.5t | 1.5t | 2.2m | 1.6m | 1.9m | 1.1m | 25kg |
| MRTSB101523 | 2.3m | 1.5t | 1.5t | 2.3m | 1.6m | 2.0m | 1.2m | 25kg |
| MRTSB101524 | 2.4m | 1.5t | 1.5t | 2.4m | 1.7m | 2.1m | 1.2m | 25kg |
| MRTSB101525 | 2.5m | 1.5t | 1.5t | 2.5m | 1.8m | 2.2m | 1.3m | 25kg |
| MRTSB101526 | 2.6m | 1.5t | 1.5t | 2.6m | 1.8m | 2.3m | 1.3m | 25kg |
| MRTSB101527 | 2.7m | 1.5t | 1.5t | 2.7m | 1.9m | 2.3m | 1.4m | 25kg |
| MRTSB101528 | 2.8m | 1.5t | 1.5t | 2.8m | 2.0m | 2.4m | 1.4m | 25kg |
| MRTSB101529 | 2.9m | 1.5t | 1.5t | 2.9m | 2.1m | 2.5m | 1.5m | 25kg |
| MRTSB101530 | 3.0m | 1.5t | 1.5t | 3.0m | 2.1m | 2.6m | 1.5m | 25kg |
