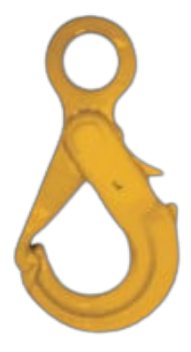

G80 Eye Self Locking Hooks with Grip Latch
G80 Eye Self Locking Hooks with Grip Latch
- Brand: Titan Lifting
- Capacity: 2.0t to 8.0t
This G80 eye self locking hook with grip latch is designed for optimal safety and versatility. The self locking mechanism ensures a secure connection to the load, preventing it from accidentally disengaging, whilst the special grip latch provides additional secure closing. With a large hook eye designed for assembling to wire rope, and a flat section allowing for assembly to omega links and connectors, this hook is ideal for a range of industrial applications.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- Individually proof tested
- 100% Magnaflux crack detection
- Constructed from forged super alloy
- Fatigue tested at 1.5 x W.L.L. for 20,000 cycles
Industries
- Civil
- Construction
- Cranes
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Marine
- Mining/Oil/Gas
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | SIZE | NET WEIGHT |
|---|---|---|---|
| TLT077ESLHGL-7/8 | 2.0t | 7/8mm | 0.75kg |
| TLT077ESLHGL-10 | 3.2t | 10mm | 1.20kg |
| TLT077ESLHGL-13 | 5.3t | 13mm | 2.00kg |
| TLT077ESLHGL-16 | 8.0t | 16mm | 4.10kg |
Dimensions
| PRODUCT CODE | A | H | E | L | D |
|---|---|---|---|---|---|
| TLT077ESLHGL-7/8 | 25mm | 21.5mm | 34mm | 163.0mm | 40mm |
| TLT077ESLHGL-10 | 32mm | 26.2mm | 42mm | 201.5mm | 50mm |
| TLT077ESLHGL-13 | 40mm | 31.0mm | 50mm | 243.0mm | 60mm |
| TLT077ESLHGL-16 | 50mm | 39.5mm | 60mm | 298.0mm | 70mm |
