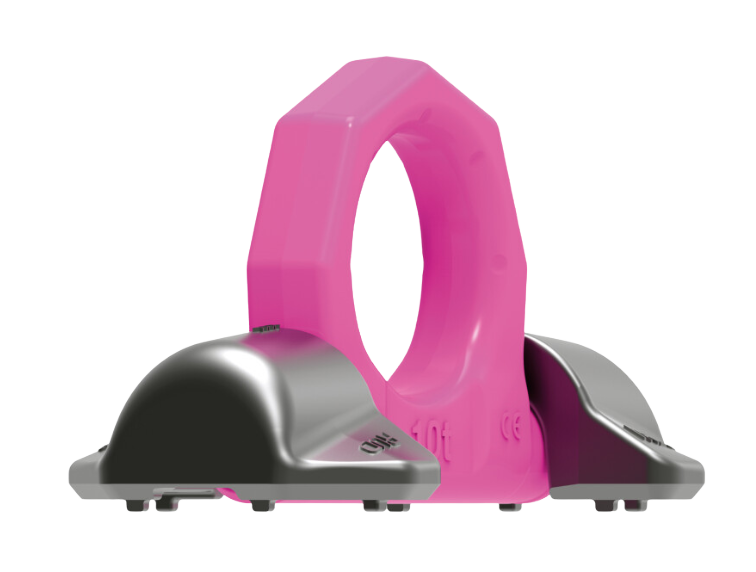

Load Ring for Welding
Load Ring for Welding
- Brand: RUD
- Capacity: 4.0t to 31.5t
Features
Industries
Documents
Features
- Safety factor of 4:1
- 180° pivot of suspension ring
- Manufactured from forged steel
Industries
- Civil
- Construction
- Engineering
- Infrastructure
- Lifts/Elevators
- Manufacturing
- Mining/Oil/Gas
- Ports
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. LIFTING | NET WEIGHT |
|---|---|---|
| RDVRBS7992488 | 4.0t | 0.8kg |
| RDVRBS7992489 | 6.7t | 1.6kg |
| RDVRBS7992490 | 10.0t | 3.0kg |
| RDVRBS7992491 | 16.0t | 6.6kg |
| RDVRBS60267 | 31.5t | 15.6kg |

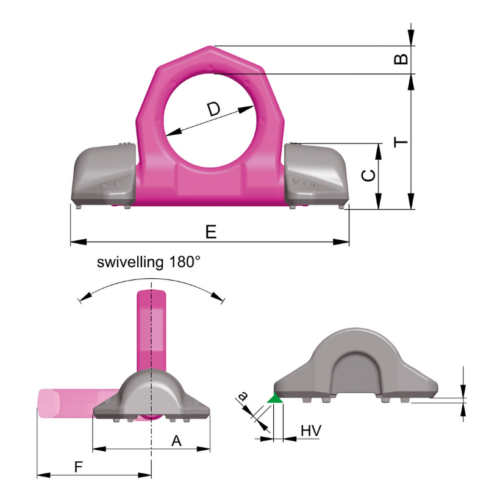

Dimensions
| PRODUCT CODE | A | B | T | C | D | E | F |
|---|---|---|---|---|---|---|---|
| RDVRBS7992488 | 62mm | 14mm | 65mm | 28mm | 48mm | 135mm | 71mm |
| RDVRBS7992489 | 88mm | 20mm | 84mm | 39mm | 60mm | 170mm | 92mm |
| RDVRBS7992490 | 100mm | 22mm | 95mm | 46mm | 65mm | 195mm | 100mm |
| RDVRBS7992491 | 130mm | 30mm | 127mm | 57mm | 90mm | 263mm | 134mm |
| RDVRBS60267 | 160mm | 42mm | 178mm | 78mm | 130mm | 373mm | 195mm |
