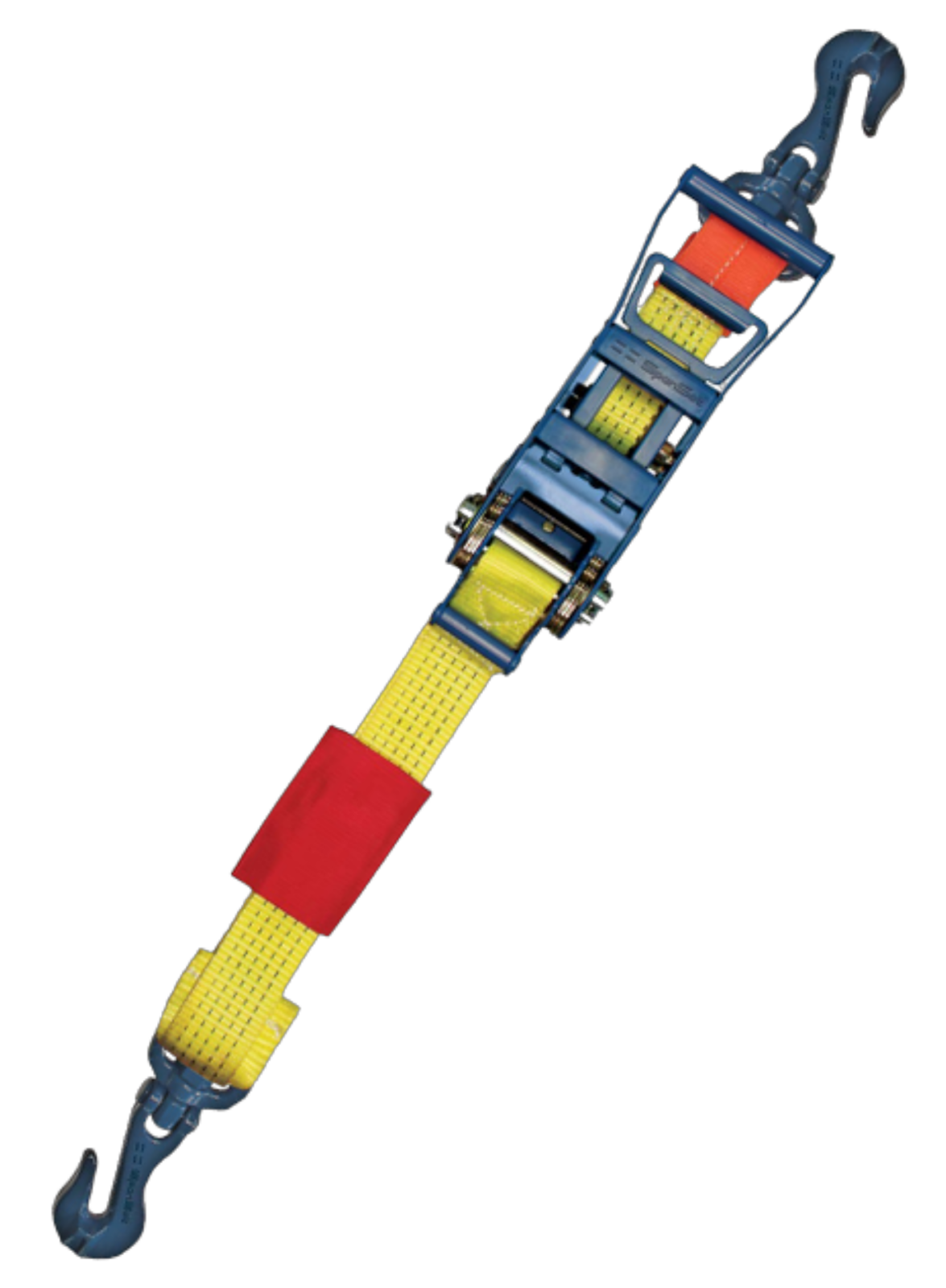

Web Dog Loadbinder
Web Dog Loadbinder
- Brand: Spanset
- Capacity: 3.8t
With a tension force indicator, the Web Dog Loadbinder overcomes the dangerous kick-back associated with load binders. Constructed from 50mm yellow webbing and fitted with 8mm grab swivel grab hooks at each end, this load binder provides optimal user safety with step-by-step controlled release, the ability to apply pre-tension and a self locking ratchet handle to prevent the ratchet handle jumping out.
- Australian Standard: AS 4380
Features
Industries
Documents
Features
- Extended handle
- Tension force indicator
- Self locking ratchet handle
- Swivel grab hook fittings in each end
Industries
- Engineering
- Infrastructure
- Lifts/Elevators
- Logistics
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | BREAK STRENGTH | LASHING CAPACITY | WEBBING WIDTH | PRETENSION | LENGTH | NET WEIGHT |
|---|---|---|---|---|---|---|
| SS20035D7049 | 8.0t | 3.8t | 50mm | 1.6t | 900mm | 4.185kg |
