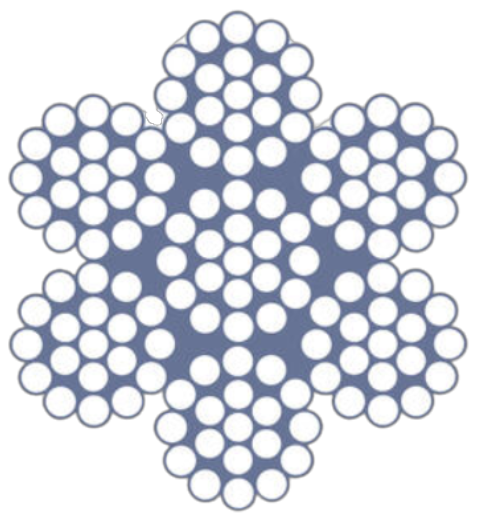

7×19 316 Stainless Steel PVC Coating Wire Rope
7×19 316 Stainless Steel PVC Coating Wire Rope
- Brand: Austlift
- Capacity: 2.67kN to 9.50kN
Durable, robust and corrosion resistant, our PVC coated stainless steel wire ropes are designed with polyvinyl chloride UV proof coating suitable for general purpose, architectural, marine, stage/theatre or wherever PVC rope is required for the application.
- Australian Standard: AS3569
Features
Industries
Documents
Features
- Designed with polyvinyl chloride UV proof coating
- Provides superior strength and excellent corrosion resistance
Industries
- Civil
- Construction
- Cranes
- Engineering
- Entertainment
- Infrastructure
- Lifts/Elevators
- Marine
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | SIZE – WIRE | SIZE – PVC | GRADE | MBS | LENGTH | NET WEIGHT |
|---|---|---|---|---|---|---|
| AL813023C | 2mm | 3mm | 316 | 2.67kN | 305m | 7.5kg |
| AL813033C | 3mm | 4mm | 316 | 6.00kN | 305m | 13.3kg |
| AL813043C | 4mm | 6mm | 316 | 9.5kN | 305m | 26.8kg |
