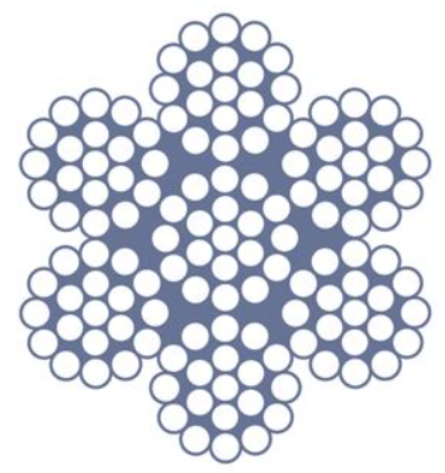

7×19 WSC G2070 Wire Rope
7×19 WSC G2070 Wire Rope
- Brand: Austlift
- Capacity: 7.8kN to 98.9kN
Our 7x19 steel core galvanised wire ropes have a flexible characteristic and suitable for, winch cable, running rigging, control cable, guying or general purpose uses wherever flexible rope is required for the application.
- Australian Standard: AS3569
Features
Industries
Documents
Features
- Fatigue resistant
- Corrosion resistant
- Manufactured from Grade 2070 galvanised wire
Industries
- Civil
- Construction
- Cranes
- Engineering
- Entertainment
- Infrastructure
- Lifts/Elevators
- Marine
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | SIZE | GRADE | MBS | LENGTH | NET WEIGHT |
|---|---|---|---|---|---|
| AL879030 | 3.0mm | 2070 | 7.80kN | 1000m | 36.8kg |
| AL879032 | 3.2mm | 2070 | 8.40kN | 1000m | 42.0kg |
| AL879035 | 3.5mm | 2070 | 8.90kN | 1000m | 46.0kg |
| AL879040 | 4.0mm | 2070 | 11.20kN | 1000m | 61.0kg |
| AL879040L | 4.0mm | 2070 | 11.20kN | 1000m | 61.0kg |
| AL879050 | 5.0mm | 2070 | 17.40kN | 1000m | 95.0kg |
| AL879055 | 5.5mm | 1770 | 17.40kN | 1000m | 115.0kg |
| AL879060 | 6.0mm | 2070 | 25.40kN | 1000m | 137.0kg |
| AL879070 | 7.0mm | 2070 | 34.01kN | 1000m | 195.2kg |
| AL879070N | 7.0mm | 1770 | 29.08kN | 1000m | 187.0kg |
| AL879080 | 8.0mm | 2070 | 43.90kN | 1000m | 244.0kg |
| AL879080N | 8.0mm | 1770 | 37.50kN | 1000m | 244.0kg |
| AL879100 | 10.0mm | 2070 | 68.60kN | 1000m | 381.0kg |
| AL879100N | 10.0mm | 1770 | 58.74kN | 1000m | 381.0kg |
| AL879120 | 12mm | 2070 | 98.90kN | 1000m | 572.0kg |
| AL879125 | 12mm | 2070 | 98.90kN | 500m | 274.0kg |
