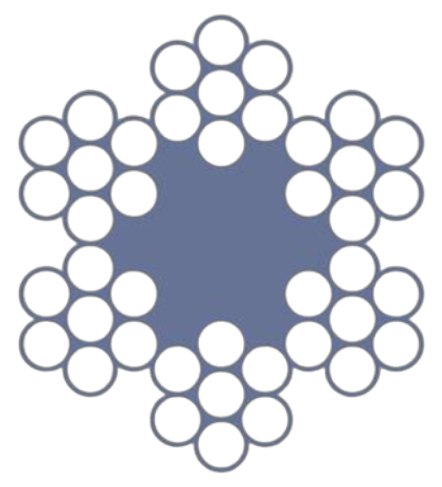

6×7 FC G1570 Wire Rope
- Brand: Austlift
- Capacity: 1.3kN to 25.5kN
Our 6x7 fibre core galvanised wire ropes have a flexible characteristic and are suitable for guying barrier wire, catenary, traveling irrigation cable, marine and general purpose uses wherever wire rope is required for the application. Available by the metre and reels.
- Australian Standard: AS3569
Features
Industries
Documents
Features
- Fibre core design
- Mid-range flexibility
- Minimum stretch coefficient
- Manufactured from Grade 1570 galvanised steel
Industries
- Civil
- Construction
- Cranes
- Engineering
- Entertainment
- Infrastructure
- Lifts/Elevators
- Marine
- Ports
Documents
Specifications
Dimensions
Specifications
PRODUCT CODE | SIZE | GRADE | MBS | LENGTH | NET WEIGHT |
---|---|---|---|---|---|
AL867016 | 1.6mm | 1570 | 1.3kN | 1000m | 9.0kg |
AL867020 | 2.0mm | 1570 | 2.1kN | 1000m | 14.7kg |
AL867025 | 2.5mm | 1570 | 3.9kN | 1000m | 22.5kg |
AL867030 | 3.0mm | 1570 | 4.7kN | 1000m | 32.0kg |
AL867035 | 3.5mm | 1570 | 5.6kN | 1000m | 43.0kg |
AL867040 | 4.0mm | 1570 | 8.4kN | 1000m | 57.0kg |
AL867050 | 5.0mm | 1570 | 13.0kN | 1000m | 89.0kg |
AL867060 | 6.0mm | 1570 | 18.7kN | 1000m | 129.0kg |
AL867065 | 6.0mm | 1570 | 18.7kN | 5000m | 64.5kg |
AL867080 | 8.0mm | 1570 | 25.5kN | 1000m | 22.9kg |
