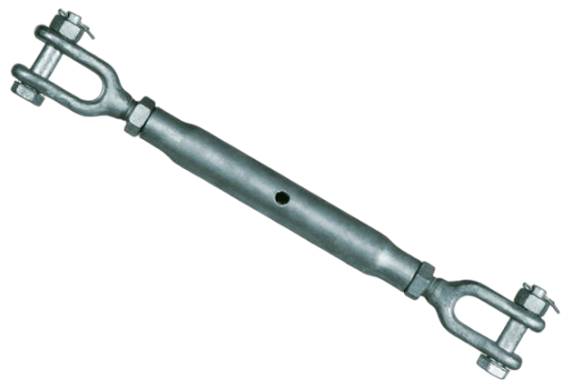

Grade P Jaw/Jaw Rigging Screw
Grade P Jaw/Jaw Rigging Screw
- Brand: Austlift
- Capacity: 0.6t to 16.0t
Suitable for industrial lifting applications, our Grade P Jaw/Jaw Rigging Screws are used for straight or in line tensioning in conjunction with wire rope and/or chain assemblies when heavy duty straining and lifting applications are required.
- Australian Standard: AS2319
Features
Industries
Documents
Features
- Individually proof tested
- Proof tested to 2 x W.L.L.
- Minimum break force of 6 x W.L.L.
- Manufactured from Grade P high tensile material
Industries
- Civil
- Construction
- Cranes
- Engineering
- Entertainment
- Infrastructure
- Lifts/Elevators
- Marine
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | SIZE | GRADE | W.L.L. | NET WEIGHT |
|---|---|---|---|---|
| AL407010 | 10mm | P | 0.6t | 0.48kg |
| AL407012 | 12mm | P | 1.0t | 0.98kg |
| AL407016 | 16mm | P | 1.6t | 1.40kg |
| AL407020 | 20mm | P | 2.5t | 2.30kg |
| AL407024 | 24mm | P | 4.0t | 4.85kg |
| AL407027 | 27mm | P | 5.0t | 5.75kg |
| AL407033 | 33mm | P | 8.0t | 8.08kg |
| AL407039 | 39mm | P | 10.t | 13.50kg |
| AL407045 | 45mm | P | 12.0t | 18.60kg |
| AL407048 | 48mm | P | 16.0t | 23.00kg |

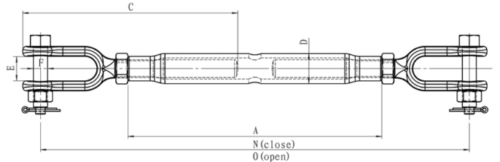

Dimensions
| PRODUCT CODE | A | C | D | E | F | N | O |
|---|---|---|---|---|---|---|---|
| AL407010 | 152mm | 124mm | 21mm | 11mm | 8mm | 235mm | 345mm |
| AL407012 | 229mm | 183mm | 25mm | 19mm | 10mm | 350mm | 525mm |
| AL407016 | 229mm | 194mm | 27mm | 22mm | 12mm | 390mm | 530mm |
| AL407020 | 229mm | 204mm | 34mm | 22mm | 16mm | 405mm | 540mm |
| AL407024 | 356mm | 292mm | 42mm | 32mm | 22mm | 565mm | 820mm |
| AL407027 | 356mm | 294mm | 45mm | 32mm | 22mm | 590mm | 805mm |
| AL407033 | 381mm | 320mm | 57mm | 38mm | 24mm | 640mm | 870mm |
| AL407039 | 407mm | 356mm | 63.5mm | 47mm | 32mm | 700mm | 960mm |
| AL407045 | 407mm | 378mm | 70mm | 51mm | 36mm | 755mm | 975mm |
| AL407048 | 407mm | 404mm | 76mm | 51mm | 42mm | 790mm | 975mm |
