Thimbles
Thimbles
- Brand: Titan Lifting
- Capacity: 20.9mbf - 1710mbf

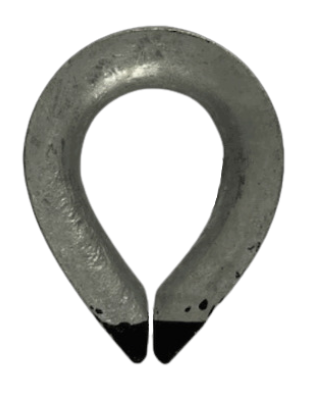

Ideal for heavy duty applications, these robust and durable wire thimbles prevent wire rope pinching and fraying at the eye. Colour dipped at the open end for easy identification.
- Australian Standard: AS1138
Features
Industries
Documents
Features
- Hot dipped galvanised finish
- Manufactured from heat treated high tensile steel
Industries
- Civil
- Construction
- Cranes
- Engineering
- Entertainment
- Infrastructure
- Lifts/Elevators
- Marine
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | SIZE | MBF | NET WEIGHT |
|---|---|---|---|
| TLTAS1138-6 | 6mm | 20.9kN | 0.04kg |
| TLTAS1138-8 | 8mm | 40.2kN | 0.05kg |
| TLTAS1138-9/10 | 10mm | 63.1kN | 0.08kg |
| TLTAS1138-11 | 11mm | 76.3kN | 0.09kg |
| TLTAS1138-12 | 12mm | 90.8kN | 0.11kg |
| TLTAS1138-13/14 | 13/14mm | 124.0kN | 0.17kg |
| TLTAS1138-16 | 16mm | 161.0kN | 0.26kg |
| TLTAS1138-18 | 18mm | 204.0kN | 0.34kg |
| TLTAS1138-20 | 20mm | 252.0kN | 0.45kg |
| TLTAS1138-22 | 22mm | 305.0kN | 0.62kg |
| TLTAS1138-24 | 24mm | 363.0kN | 0.85kg |
| TLTAS1138-26 | 26mm | 426.0kN | 0.95kg |
| TLTAS1138-28/30 | 28/30mm | 494.0kN | 1.3kg |
| TLTAS1138-32 | 32mm | 646.0kN | 1.6kg |
| TLTAS1138-36 | 36mm | 817.0kN | 2.4kg |
| TLTAS1138-40 | 40mm | 1010.0kN | 3.4kg |
| TLTAS1138-44 | 44mm | 1220.0kN | 6.2kg |
| TLTAS1138-48 | 48mm | 1450.0kN | 7.7kg |
| TLTAS1138-52 | 52mm | 1710.0kN | 8.3kg |

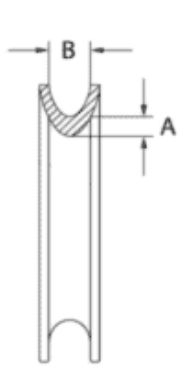

Dimensions
| PRODUCT CODE | H | A | B | D |
|---|---|---|---|---|
| TLTAS1138-6 | 16mm | 4mm | 7.0mm | 25mm |
| TLTAS1138-8 | 22mm | 5mm | 7.9mm | 33mm |
| TLTAS1138-9/10 | 25mm | 5mm | 10.3mm | 38mm |
| TLTAS1138-11 | 29mm | 6mm | 12.7mm | 41mm |
| TLTAS1138-12 | 32mm | 6mm | 14.3mm | 44mm |
| TLTAS1138-13/14 | 38mm | 7mm | 15.0mm | 46mm |
| TLTAS1138-16 | 41mm | 8mm | 15.9mm | 59mm |
| TLTAS1138-18 | 46mm | 8mm | 18.0mm | 65mm |
| TLTAS1138-20 | 52mm | 10mm | 21.6mm | 75mm |
| TLTAS1138-22 | 57mm | 10mm | 22.2mm | 83mm |
| TLTAS1138-24 | 64mm | 11mm | 25.4mm | 92mm |
| TLTAS1138-26 | 72mm | 11mm | 27.0mm | 111mm |
| TLTAS1138-28/30 | 76mm | 12mm | 28.6mm | 111mm |
| TLTAS1138-32 | 95mm | 14mm | 33.4mm | 133mm |
| TLTAS1138-36 | 105mm | 16mm | 38.0mm | 152mm |
| TLTAS1138-40 | 114mm | 18mm | 43.0mm | 165mm |
| TLTAS1138-44 | 127mm | 20mm | 47.0mm | 178mm |
| TLTAS1138-48 | 134mm | 22mm | 51.0mm | 190mm |
| TLTAS1138-52 | 140mm | 22mm | 55.0mm | 203mm |
