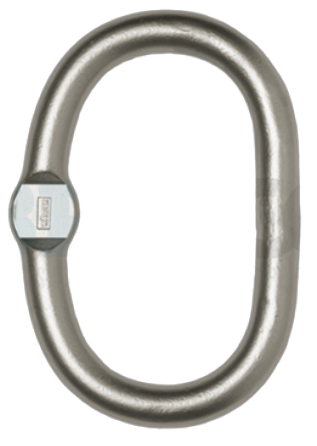

G60 Oblong Master Link
G60 Oblong Master Link
- Brand: Cromox
- Capacity: 0.63t to 16.00t
Suitable for 1 and 2 leg chain slings, this high quality and corrosion resistant Grade 60 master link is ideal for use in marine, wastewater, construction, and industrial environments. Made from durable duplex stainless steel, this master link features a flattened section to allow for the use of wire rope thimbles and connectors such as clevis shackles.
- Australian Standard: AS 3776
Features
Industries
Documents
Features
- Corrosion and rust resistant
- Manufactured from Grade 60 stainless steel
- Flattened section for the use of connectors and wire thimbles
Industries
- Civil
- Construction
- Engineering
- Infrastructure
- Marine
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | FOR CHAIN 1 LEG | FOR CHAIN 2 LEG 90° | NET WEIGHT |
|---|---|---|---|---|
| BCKW-CAGF10 | 0.63t | 5mm | 4mm | 0.150kg |
| BCKW-CAGF13 | 1.55t | 6/7/8mm | 5/6mm | 0.340kg |
| BCKW-CAGF16 | 2.45t | 10mm | 7/8mm | 0.530kg |
| BCKW-CAGF18 | 3.55t | – | 10mm | 0.800kg |
| BCKW-CAGF22 | 6.00t | 13/16mm | 13mm | 1.500kg |
| BCKW-CAGF26 | 8.00t | 18mm | 16mm | 2.300kg |
| BCKW-CAGF32 | 12.00t | 20mm | 18mm | 3.900kg |
| BCKW-CAGF36 | 16.00t | – | 30mm | 6.350kg |
Dimensions
| PRODUCT CODE | D | T | B |
|---|---|---|---|
| BCKW-CAGF10 | 10mm | 80mm | 50mm |
| BCKW-CAGF13 | 13mm | 110mm | 60mm |
| BCKW-CAGF16 | 16mm | 110mm | 60mm |
| BCKW-CAGF18 | 18mm | 135mm | 75mm |
| BCKW-CAGF22 | 22mm | 160mm | 90mm |
| BCKW-CAGF26 | 26mm | 180mm | 100mm |
| BCKW-CAGF32 | 32mm | 200mm | 110mm |
| BCKW-CAGF36 | 36mm | 260mm | 140mm |
