G80 Concrete Clutches
G80 Concrete Clutches
- Brand: Titan Lifting
- Capacity: 1.3t to 5.0t

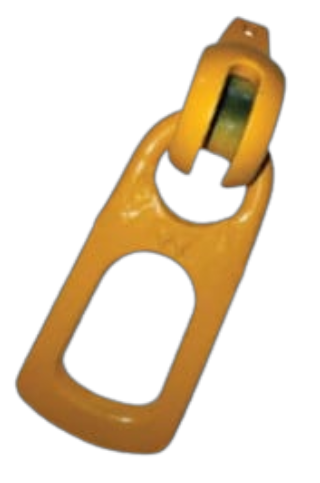

Strong and versatile, this concrete clutch is ideal for lifting and manoeuvring pre-cast concrete panels, construction panels and columns. The clutch features a large, load bearing eye designed for direct connection to chain slings or wire ropes, as well as a safety latch that prevents the load from disengaging.
- Australian Standard: AS3850
Features
Industries
Documents
Features
- Individually proof tested
- Yellow powder coated finish
- 100% Magnaflux crack detection
- Constructed from forged and cast super alloy steel
Industries
- Civil
- Construction
- Cranes
- Engineering
- Manufacturing
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | B.L/T | NET WEIGHT |
|---|---|---|---|
| TLTCLUTCH-1.3T | 1.3t | 6.5 | 0.865kg |
| TLTCLUTCH-2.5T | 2.5t | 12.5 | 1.500kg |
| TLTCLUTCH-5T | 5.0t | 25.0 | 3.100kg |
Dimensions
| PRODUCT CODE | P | C | A | B | H |
|---|---|---|---|---|---|
| TLTCLUTCH-1.3T | 148mm | 75.0mm | 33mm | 118mm | 6mm |
| TLTCLUTCH-2.5T | 198mm | 91.5mm | 41mm | 145mm | 7mm |
| TLTCLUTCH-5T | 238mm | 118.0mm | 57mm | 170mm | 5mm |
