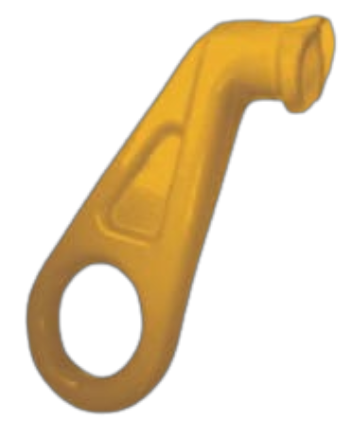

G80 Container Lug L & R Type
G80 Container Lug L & R Type
- Brand: Titan Lifting
- Capacity: 12.5t
Specifically designed for the safe vertically lifting of containers, including those with twist lock pockets, these G80 container lugs are available in left (L) and right (R) hand configurations, and lock securely into the corner castings of the container. With a large eye that allows for the attachment of most sized hooks, these robust lugs are ideal for use with rope slings or G80 chain.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- Safety factor of 4:1
- 100% Magnaflux crack detection
- Constructed from forged super alloy steel
- Fatigue tested at 1.5 x W.L.L. for 20,000 cycles
Industries
- Construction
- Cranes
- Infrastructure
- Logistics
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | NET WEIGHT |
|---|---|---|
| TLT633CL-L | 12.5t | 4.0kg |
| TLT633CL-R | 12.5t | 4.0kg |
Dimensions
| PRODUCT CODE | A | M | H | h | E | R | d | D | L |
|---|---|---|---|---|---|---|---|---|---|
| TLT633CL-L | 46mm | 75mm | 166mm | 25mm | 48mm | 60mm | 70mm | 25mm | 265mm |
| TLT633CL-R | 46mm | 75mm | 166mm | 25mm | 48mm | 60mm | 70mm | 25mm | 265mm |
