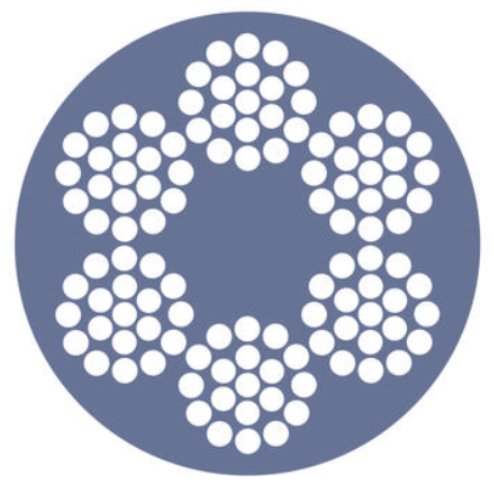

PVC 6x19FC G1570 Wire Rope
PVC 6x19FC G1570 Wire Rope
- Brand: Austlift
Our PVC coated galvanised wire ropes have a flexible characteristic with polyvinyl chloride UV proof coating suitable for general purpose, architectural, marine, stage/theatre or wherever PVC rope is required for the application. Available by the metre or reel.
- Australian Standard: AS3569
Features
Industries
Documents
Features
- Abrasion and crush resistant
- Manufactured from Grade 1570 galvanised steel
- Supplied standard in blue – clear, black, red and yellow available on request
Industries
- Civil
- Construction
- Cranes
- Engineering
- Entertainment
- Infrastructure
- Lifts/Elevators
- Marine
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | SIZE WIRE | SIZE PVC | GRADE | MBS | LENGTH | NET WEIGHT |
|---|---|---|---|---|---|---|
| AL811035 (R) | 3mm | 5mm | 1570 | 6.4kN | 1000m | 58.2kg |
| AL811040 (R) (Y) | 4mm | 6mm | 1570 | 8.5kN | 1000m | 80.0kg |
| AL811050 (C) (R) (Y) | 5mm | 7mm | 1570 | 13.2kN | 1000m | 116.0kg |
| AL811060 (B) (C) (Y) | 6mm | 8mm | 1570 | 19.3kN | 1000m | 160.0kg |
| AL811062 | 6mm | 8mm | 1570 | 19.3kN | 200m | 32.0kg |
| AL811080 | 8mm | 10mm | 1570 | 33.3kN | 1000m | 269.6kg |
| AL811085 | 8mm | 10mm | 1570 | 33.3kN | 500m | 134.8kg |
| AL811085S | 8mm | 12mm | 1570 | 33.3kN | 500m | 140.8kg |
| AL811110 | 10mm | 12mm | 1570 | 48.2kN | 1000m | 404.0kg |
| AL811105 | 10mm | 12mm | 1570 | 48.2kN | 500m | 202.0kg |
