10t Equaliser
10t Equaliser
- Brand: Maxirig
- Capacity: 10.0t
Strong and robust, this 10t equaliser is ideal when using multiple sling legs, providing a means of equalising forces within the legs. Connection is made via standard Grade “S” bow shackle and is suitable for use with chain, wire rope or synthetic slings. Perfect in compensating for differences in load lift points and sling lengths, this equaliser plate ensures maximum safety and efficiency when lifting loads with multiple slings. Supplied with proof load test certificate and MPI weld inspection report.
- Australian Standard: AS4991
Features
Industries
Documents
Features
- Hot dipped galvanised finish
- Constructed from high-tensile alloy steel
- Suitable for use with chain, wire rope or synthetic slings
Industries
- Construction
- Logistics
- Manufacturing
- Warehousing
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | S.W.L. | TOP LIFTING LUG | LOWER LOAD LUG | NET WEIGHT |
|---|---|---|---|---|
| MREQP1010 | 10.0t | 12.0t Grade ‘S’ safety bow shackle | 6.5t Grade ‘S’ safety bow shackle | 15kg |

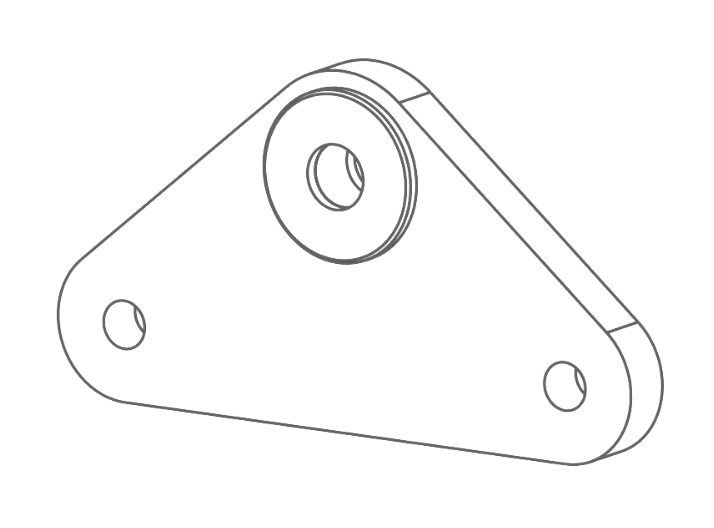

Dimensions
| PRODUCT CODE | A | B |
|---|---|---|
| MREQP1010 | 105mm | 300mm |
