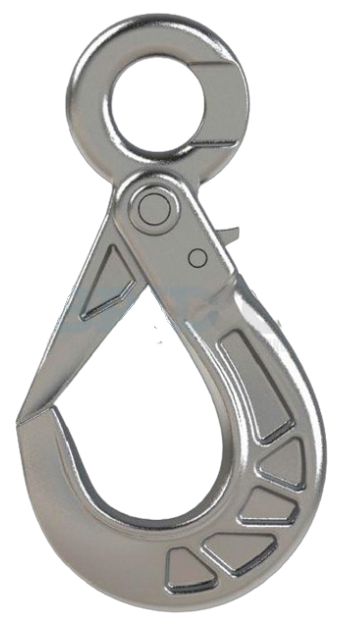

G60 Self Locking Eye Hook
G60 Self Locking Eye Hook
- Brand: Cromox
- Capacity: 0.63t to 6.00t
Ideal for heavy duty lifting applications, this lightweight high load capacity self locking eye hook is designed to self lock under load, providing an additional layer of safety during lifting. Manufactured from Grade 60 stainless steel, all componentry of the hook has a very high corrosion resistance, and is suitable for offshore applications.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- High corrosion resistance
- Self locking when under load
- Manufactured from Grade 60 stainless steel
Industries
- Civil
- Construction
- Engineering
- Infrastructure
- Marine
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | NET WEIGHT |
|---|---|---|
| BCKW-COSL05 | 0.63t | 0.270kg |
| BCKW-COSL06 | 0.90t | 0.410kg |
| BCKW-COSL07 | 1.25t | 0.600kg |
| BCKW-COSL08 | 1.55t | 0.850kg |
| BCKW-COSL10 | 2.45t | 1.500kg |
| BCKW-COSL13 | 3.85t | 3.500kg |
| BCCOSL16 | 6.00t | 5.100kg |
Dimensions
| PRODUCT CODE | T | G | B | H |
|---|---|---|---|---|
| BCKW-COSL05 | 93mm | 28mm | 24mm | 19mm |
| BCKW-COSL06 | 108mm | 33mm | 25mm | 22mm |
| BCKW-COSL07 | 122mm | 37mm | 27mm | 25mm |
| BCKW-COSL08 | 137mm | 41mm | 28mm | 28mm |
| BCKW-COSL10 | 166mm | 50mm | 38mm | 34mm |
| BCKW-COSL13 | 220mm | 66mm | 48mm | 45mm |
| BCCOSL16 | 250mm | 75mm | 56mm | 51mm |
