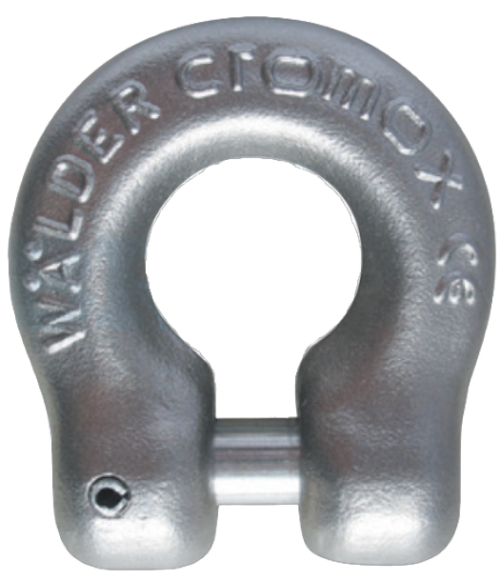

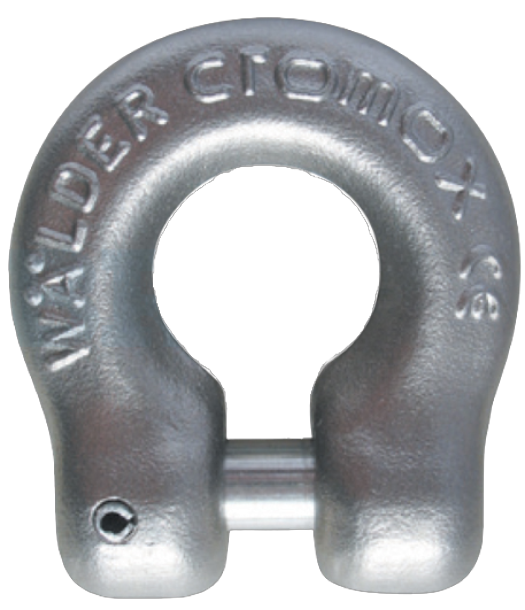

G60 Clevis Shackle
G60 Clevis Shackle
- Brand: Cromox
- Capacity: 0.4t to 8.0t
Suitable for various lifting applications, this secure and durable G60 stainless steel clevis shackle provides safe and efficient lifting in various industrial applications.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- Sand blasted
- Corrosion and rust resistant
- Manufactured from Grade 60 stainless steel
Industries
- Civil
- Construction
- Engineering
- Infrastructure
- Marine
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | NET WEIGHT |
|---|---|---|
| BCKW-CGS04 | 0.40t | 0.060kg |
| BCKW-CGS05 | 0.63t | 0.072kg |
| BCKW-CGS06 | 0.90t | 0.160kg |
| BCKW-CGS08 | 1.55t | 0.230kg |
| BCKW-CGS10 | 2.45t | 0.460kg |
| BCKW-CGS13 | 3.85t | 0.675kg |
| BCKW-CGS16 | 6.00t | 1.200kg |
| BCCGS18 | 8.00t | 1.850kg |

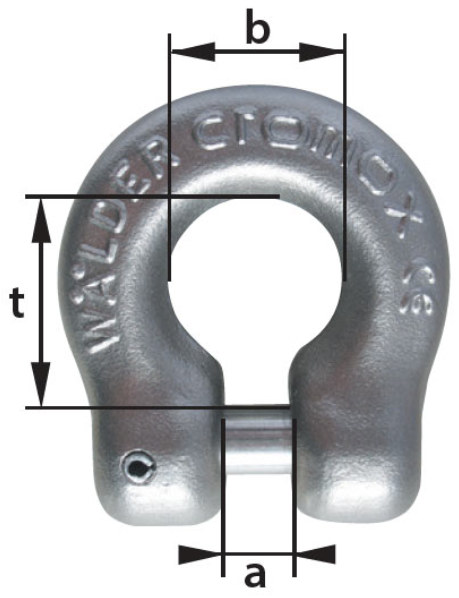

Dimensions
| PRODUCT CODE | T | B | A |
|---|---|---|---|
| BCKW-CGS04 | 19.0mm | 15mm | 6.5mm |
| BCKW-CGS05 | 21.0mm | 17mm | 7.0mm |
| BCKW-CGS06 | 26.0mm | 20mm | 7.0mm |
| BCKW-CGS08 | 30.0mm | 23mm | 9.0mm |
| BCKW-CGS10 | 40.0mm | 28mm | 11.0mm |
| BCKW-CGS13 | 48.0mm | 38mm | 14.0mm |
| BCKW-CGS16 | 53.0mm | 42mm | 17.0mm |
| BCCGS18 | 61.5mm | 48mm | 19.5mm |
