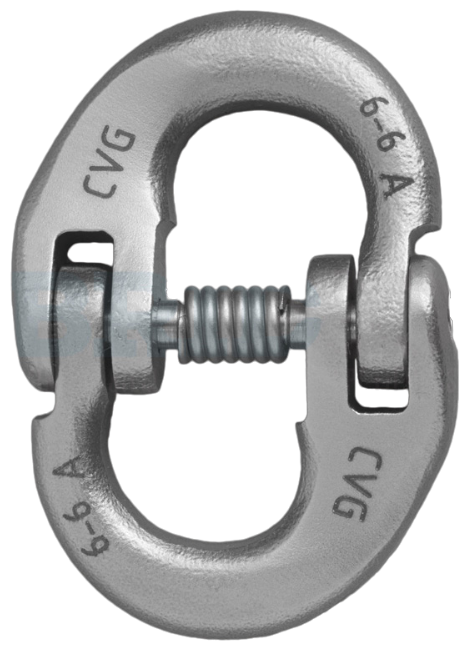

G60 Connecting Links
G60 Connecting Links
- Brand: Cromox
- Capacity: 0.9t to 6.0t
Robust and reliable, with a safety factor of 4:1 for chain slings, this G60 stainless steel connecting link is ideal for connecting head rings, chain and hooks, providing safe lifting for various industrial applications. The connector design ensures the pin is captured in the connector and is not able to release should the load line become slack or into contact with another object. Test certificate available upon request.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- Corrosion and rust resistant
- Safety factor of 4:1 for chain slings
- Body constructed from Grade 60 stainless steel
- Connector marked with chain size and batch number
Industries
- Civil
- Construction
- Engineering
- Infrastructure
- Marine
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | NET WEIGHT |
|---|---|---|
| BCKW-CVG05 | 0.63t | 0.085kg |
| BCKW-CVG06 | 0.90t | 0.085kg |
| BCKW-CVG08 | 1.55t | 0.150kg |
| BCKW-CVG10 | 2.45t | 0.310kg |
| BCKW-CVG13 | 3.85t | 0.515kg |
| BCKW-CVG16 | 6.00t | 0.980kg |

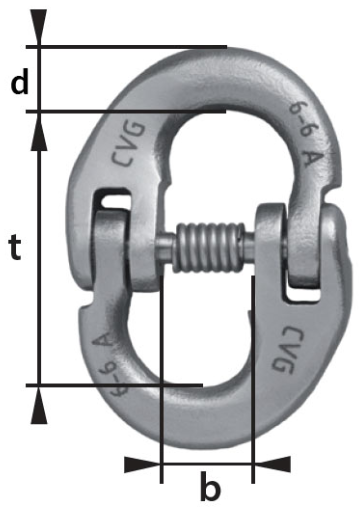

Dimensions
| PRODUCT CODE | T | B | D |
|---|---|---|---|
| BCKW-CVG05 | 33.0mm | 12.0mm | 7.0mm |
| BCKW-CVG06 | 42.0mm | 15.0mm | 7.5mm |
| BCKW-CVG08 | 55.0mm | 18.0mm | 11.5mm |
| BCKW-CVG10 | 69.0mm | 22.0mm | 14.5mm |
| BCKW-CVG13 | 75.0mm | 29.0mm | 15.0mm |
| BCKW-CVG16 | 92.0mm | 36.0mm | 18.5mm |
