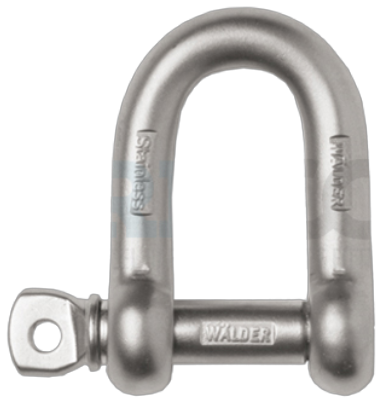

G60 D Shackles
G60 D Shackles
- Brand: Cromox
- Capacity: 0.4t to 13.0t
Suitable for various lifting applications, this secure and durable G60 stainless steel D-shackle provides safe and efficient lifting in various industrial applications.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- Bright polished finish
- Corrosion and rust resistant
- Manufactured from Grade 60 stainless steel
Industries
- Civil
- Construction
- Engineering
- Infrastructure
- Marine
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | NET WEIGHT |
|---|---|---|
| BCKW-CSA04 | 0.40t | 0.035kg |
| BCKW-CSA05 | 0.63t | 0.070kg |
| BCKW-CSA06 | 0.90t | 0.135kg |
| BCKW-CSA08 | 1.55t | 0.220kg |
| BCKW-CSA10 | 2.45t | 0.510kg |
| BCKW-CSA13 | 3.45t | 0.910kg |
| BCPE-PH5TA | 5.00t | 0.550kg |
| BCPE-PH7TA | 7.00t | 1.000kg |
| BCPE-PH9TA | 9.00t | 1.900kg |
| BCPE-PH11TA | 11.00t | 2.900kg |
| BCPE-PH13TA | 13.00t | 3.100kg |

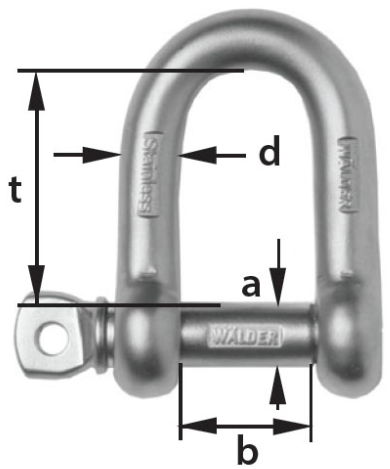

Dimensions
| PRODUCT CODE | A | D | T | B |
|---|---|---|---|---|
| BCKW-CSA04 | 7mm | 6mm | 23mm | 12mm |
| BCKW-CSA05 | 9mm | 8mm | 24mm | 17mm |
| BCKW-CSA06 | 11mm | 10mm | 35mm | 20mm |
| BCKW-CSA08 | 13mm | 12mm | 42mm | 25mm |
| BCKW-CSA10 | 18mm | 16mm | 64mm | 32mm |
| BCKW-CSA13 | 21mm | 19mm | 76mm | 38mm |
| BCPE-PH5TA | 19mm | 16mm | 64mm | 32mm |
| BCPE-PH7TA | 22mm | 19mm | 76mm | 38mm |
| BCPE-PH9TA | 26mm | 22mm | 88mm | 44mm |
| BCPE-PH11TA | 29mm | 25mm | 102mm | 51mm |
| BCPE-PH13TA | 32mm | 29mm | 114m | 57mm |
