G60 Swivel Load Hooks
G60 Swivel Load Hooks
- Brand: Cromox
- Capacity: 0.63t to 2.50t

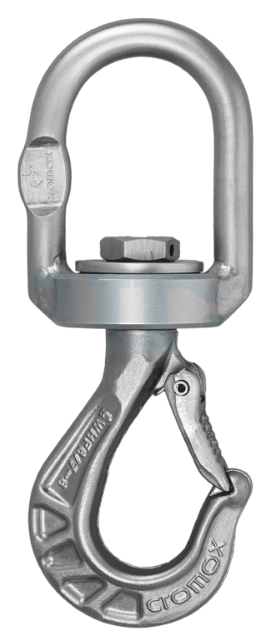

Robust and reliable, this G60 stainless steel swivel load hook is ideal for various industrial lifting applications. Featuring a flattened section on the large eyelet for connection to clevis shackles and ball bearings for easy rotation under load, this swivel hook is both versatile and secure.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- Large eyelet
- Ball bearings
- Corrosion resistant
- Flattened section on eyelet
Industries
- Civil
- Construction
- Engineering
- Infrastructure
- Marine
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | NET WEIGHT |
|---|---|---|
| BCCWHB4/5 | 0.63t | 0.650t |
| BCCWHB6/7 | 1.25t | 0.988t |
| BCCWHB8/10 | 2.50t | 2.710t |
Dimensions
| PRODUCT CODE | T | G | B | H |
|---|---|---|---|---|
| BCCWHB4/5 | 120mm | 20mm | 40mm | 16mm |
| BCCWHB6/7 | 165mm | 25mm | 49mm | 21mm |
| BCCWHB8/10 | 235mm | 40mm | 64mm | 33mm |
