G60 Weldable Lifting Points
G60 Weldable Lifting Points
- Brand: Cromox
- Capacity: 0.5t to 2.0t
Safe and durable, this G60 stainless steel weldable lifting point is ideal for lifting and transporting heavy loads. Suitable for welding onto any carbon steel surface as a lifting point or as a fixed anchor point for load restraint application, providing quick and easy installation.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- Safety factor of 4:1
- Corrosion and rust resistant
- Constructed from Grade 60 stainless steel
Industries
- Civil
- Construction
- Engineering
- Infrastructure
- Marine
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | NET WEIGHT |
|---|---|---|
| BCKW-CSAG05 | 0.5t | 0.165kg |
| BCKW-CSAG1 | 1.0t | 0.370kg |
| BCKW-CSAG2 | 2.0t | 0.955kg |

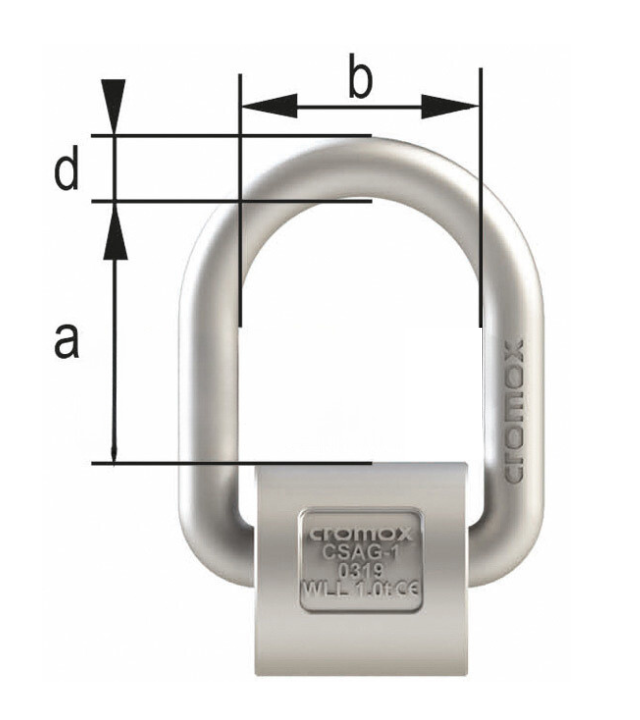

Dimensions
| PRODUCT CODE | A | B | D |
|---|---|---|---|
| BCKW-CSAG05 | 33mm | 30mm | 10mm |
| BCKW-CSAG1 | 44mm | 40mm | 13mm |
| BCKW-CSAG2 | 52mm | 55mm | 18mm |
