G60 Swivel Lifting Eye Screws
- Brand: Cromox
- Capacity: 0.5t to 1.0t

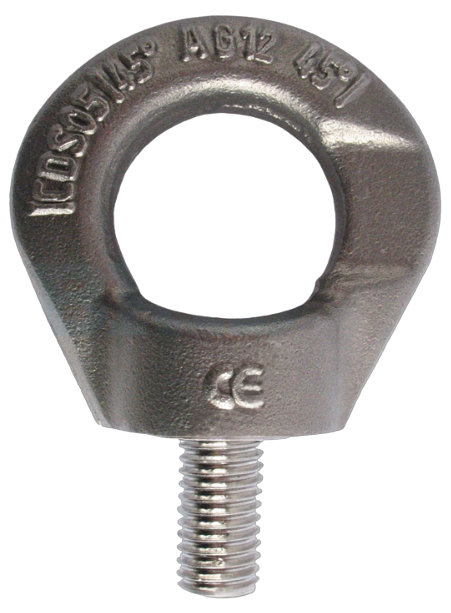

Versatile and reliable, this G60 stainless steel swivel lifting eye screw is suitable for a variety of lifting functions. Featuring a swivel mechanism, it is ideal for use in rotating applications and allows for easy adjustment of the load.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- Sand blasted finish
- Corrosion and rust resistant
- Constructed from Grade 60 stainless steel
Industries
- Civil
- Construction
- Engineering
- Infrastructure
- Marine
Documents
Specifications
Dimensions
Specifications
PRODUCT CODE | W.L.L. | THREAD | NET WEIGHT |
---|---|---|---|
BCCDS05 | 0.5t | M12 x 22 | 0.200kg |
BCCDS1 | 1.0t | M16 x 25 | 0.310kg |

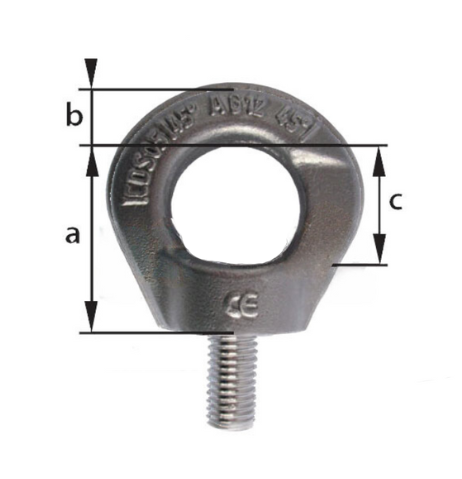

Dimensions
PRODUCT CODE | A | B | D |
---|---|---|---|
BCCDS05 | 44.0mm | 12.5mm | 29.5mm |
BCCDS1 | 49.5mm | 14.0mm | 32.5mm |
