G60 Swivel Eye Screws
G60 Swivel Eye Screws
- Brand: Cromox

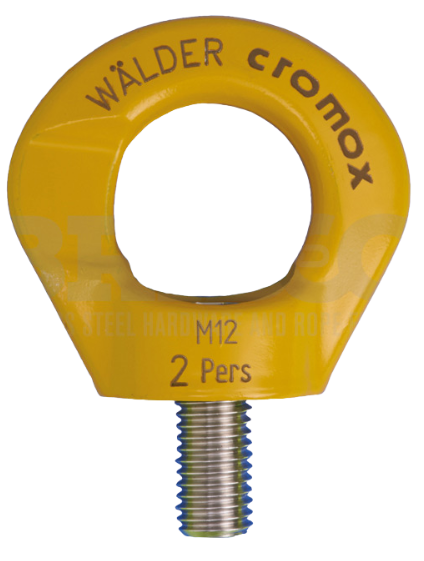

With high fatigue resistance and 100% crack detection, this strong and reliable swivel eye screw offers 360° rotation and is adjustable in any load direction. Certified as personal protective equipment, with the screw secured at the ring body, this swivel eye is ideal for a range of applications.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- Crack detection
- 360 degree rotation
- High fatigue resistance
- Corrosion and rust resistance
Industries
- Civil
- Construction
- Engineering
- Infrastructure
- Marine
Documents
Specifications
Dimensions
Specifications

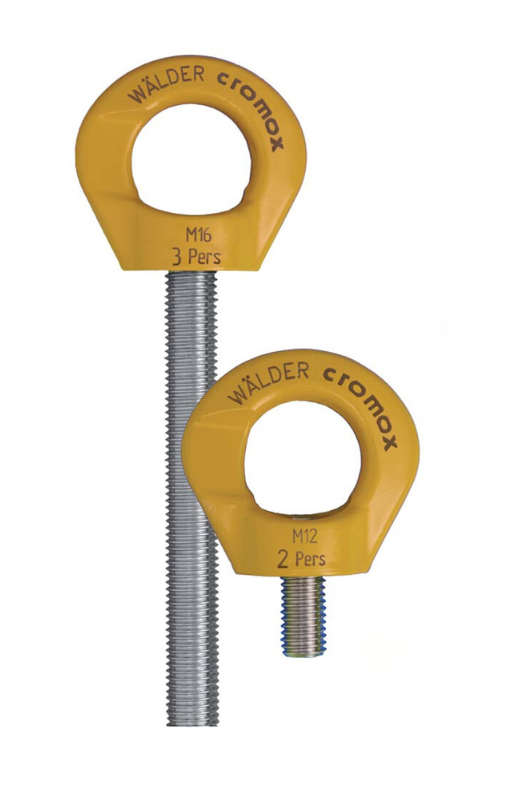

| PRODUCT CODE | CAPACITY | THREAD | NET WEIGHT |
|---|---|---|---|
| BCCDSPSA2 | 2 people | M12 x 22mm | 0.20kg |
| BCCDSPSA3 | 3 people | M16 x 25mm | 0.31kg |

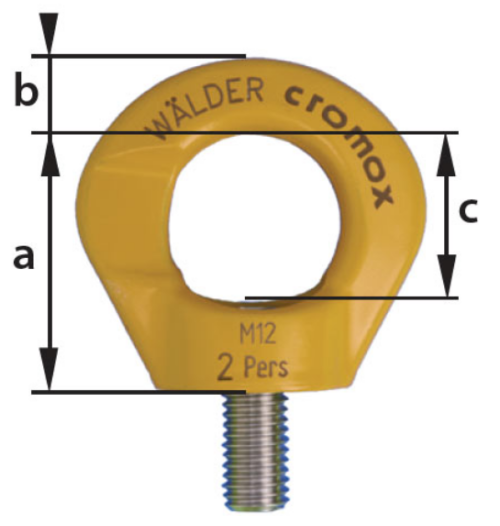

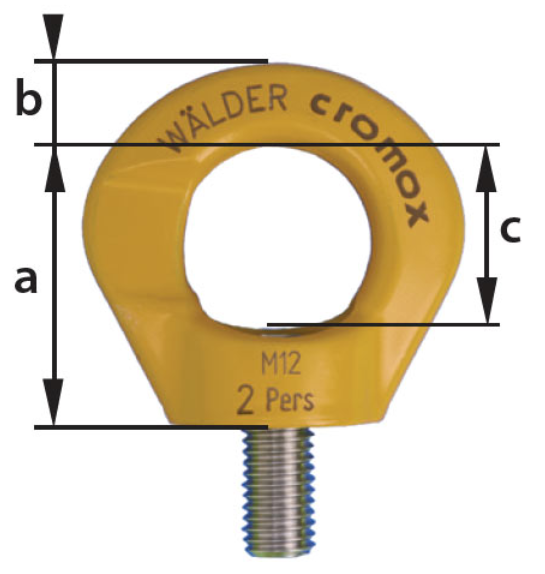

Dimensions
| PRODUCT CODE | A | B | C |
|---|---|---|---|
| BCCDSPSA2 | 44.0mm | 12.5mm | 29.5mm |
| BCCDSPSA3 | 49.5mm | 14.0mm | 32.5mm |
