G60 Swivel Lifting Point
G60 Swivel Lifting Point
- Brand: Cromox
- Capacity: 1.00t to 1.55t

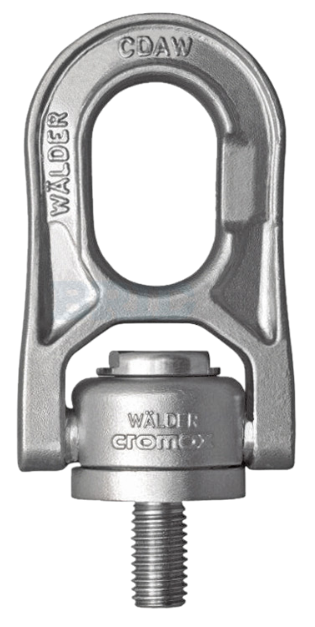

Robust and reliable, this G60 stainless steel swivel lifting point is ideal for lifting applications where rotation is required. Featuring a flattened section for connection with a clevis shackle and 360° rotation adjustable in any loading direction, this swivel lifting point is versatile and suitable for corrosive environments. With high fatigue resistance, fracture testing and angle marks with indication on the back, this screw is safe and durable.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- 360° rotation
- Flattened section
- Corrosion resistant
- High fatigue resistance
Industries
- Civil
- Construction
- Engineering
- Infrastructure
- Marine
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | THREAD | NET WEIGHT |
|---|---|---|---|
| BCCDAWM14 | 1.00t | M14 x 26 | 0.49kg |
| BCCDAWM16 | 1.25t | M16 x 26 | 0.50kg |
| BCCDAWM20 | 1.55t | M20 x 30 | 0.51kg |
Dimensions
| PRODUCT CODE | A | T | D |
|---|---|---|---|
| BCCDAWM14 | 68.0mm | 98.5mm | 31.0mm |
| BCCDAWM16 | 68.0mm | 98.5mm | 31.0mm |
| BCCDAWM20 | 68.0mm | 98.5mm | 31.0mm |
