G60 Swivel Load Hook
G60 Swivel Load Hook
- Brand: Cromox
- Capacity: 0.40t to 2.50t

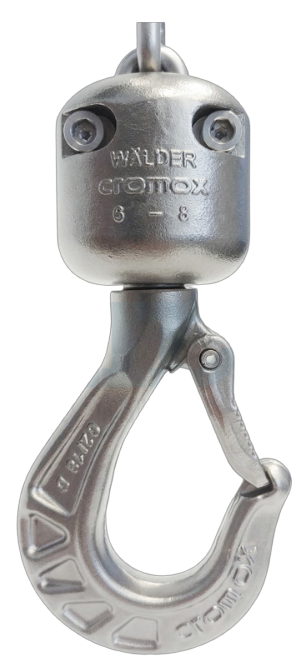

Designed for direct connection to chain, this compact swivel load hook is suitable for use with both manual and electric chain hoists. The hook features a large eyelet for multiple applications, with ball bearings in the head to allow easy rotation even under full load. Constructed from G60 stainless steel, this hook is corrosion resistant and ideal for safely and efficiently moving heavy loads.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- Rotating hook
- Stainless steel ball bearings
- Corrosion and rust resistant
- Constructed from Grade 60 stainless steel
Industries
- Civil
- Construction
- Engineering
- Infrastructure
- Marine
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | FITTING CHAIN | NET WEIGHT |
|---|---|---|---|
| BCCWHF40 | 0.40t | 4 x 12/12.1/12.3 | 0.45kg |
| BCCWHF50 | 0.63t | 5 x 15/15.1/15.3 | 0.45kg |
| BCCWHF60 | 0.95t | 6 x 18/16.7 | 1.10kg |
| BCCWHF63 | 1.00t | 6.3 x 19.1 | 1.10kg |
| BCCWHF70 | 1.25t | 7 x 21/22 | 1.10kg |
| BCCWHF71 | 1.30t | 7.1 x 20.5/21.2 | 1.10kg |
| BCCWHF80 | 1.60t | 8 x 24/24.2 | 3.50kg |
| BCCWHF90 | 2.00t | 9 x 27 | 3.50kg |
| BCCWHF95 | 2.30t | 9.5 x 28.5 | 3.50kg |
| BCCWHF100 | 2.50t | 10 x 28/30 | 3.50kg |
Dimensions
| PRODUCT CODE | HOOK OPENING |
|---|---|
| BCCWHF40 | 20mm |
| BCCWHF50 | 20mm |
| BCCWHF60 | 25mm |
| BCCWHF63 | 25mm |
| BCCWHF70 | 25mm |
| BCCWHF71 | 25mm |
| BCCWHF80 | 40mm |
| BCCWHF90 | 40mm |
| BCCWHF95 | 40mm |
| BCCWHF100 | 40mm |
