G60 Quick Connection Shackle
G60 Quick Connection Shackle
- Brand: Cromox
- Capacity: 0.9t to 6.0t

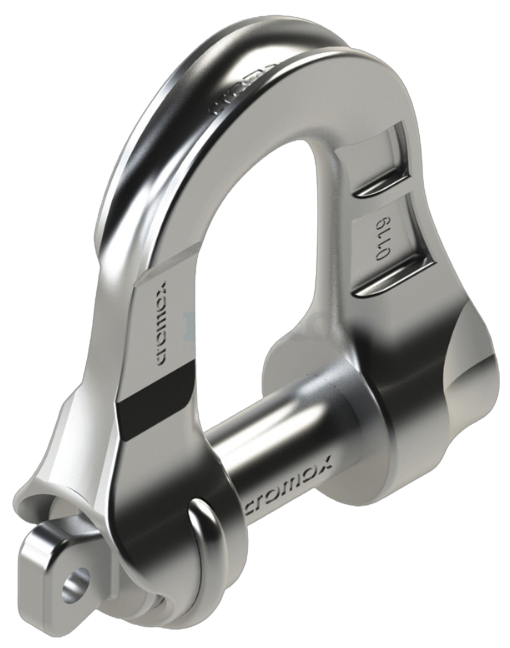

This G60 stainless steel quick connection shackle is a versatile and reliable option for a variety of lifting purposes. Ideal for use in rotating applications, the free turning of the locked bolt allows for easy adjustment of the load, whilst the double locking feature provides additional load security.
- Australian Standard: AS3776
Features
Industries
Documents
Features
- Blasted finish
- Double locking
- Corrosion and rust resistant
- Constructed from G60 stainless steel
Industries
- Civil
- Construction
- Engineering
- Infrastructure
- Marine
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | W.L.L. | NET WEIGHT |
|---|---|---|
| BCCSVS06 | 0.90t | 0.255kg |
| BCCSVS08 | 1.55t | 0.255kg |
| BCCSVS10 | 2.45t | 0.595kg |
| BCCSVS13 | 3.85t | 1.070kg |
| BCCSVS16 | 6.00t | 1.710kg |
Dimensions
| PRODUCT CODE | T | B | A | C |
|---|---|---|---|---|
| BCCSVS06 | 35mm | 13mm | 75mm | 25mm |
| BCCSVS08 | 42mm | 13mm | 75mm | 25mm |
| BCCSVS10 | 64mm | 18mm | 112mm | 32mm |
| BCCSVS13 | 76mm | 21mm | 131mm | 38mm |
| BCCSVS16 | 88mm | 24mm | 153mm | 44mm |
