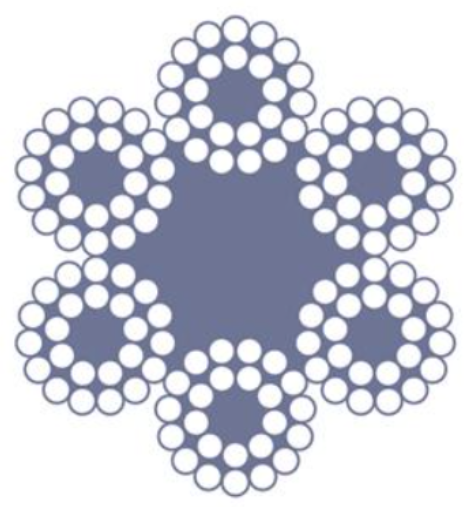

6×24 +7FC G1570 Wire Rope
6×24 +7FC G1570 Wire Rope
- Brand: Austlift
Our 6x24 fibre core galvanised wire ropes have very flexible characteristics and are suitable for slings, static lines, hoists, winches or general purpose uses wherever rope is required for the application. Available by the metre or reel.
- Australian Standard: AS3569
Features
Industries
Documents
Features
- High range flexibility
- Metal fill factor 41.6%
- Low stretch coefficient
- Manufactured from G1570 galvanised steel
Industries
- Civil
- Construction
- Cranes
- Engineering
- Entertainment
- Infrastructure
- Lifts/Elevators
- Marine
- Ports
Documents
Specifications
Dimensions
Specifications
| PRODUCT CODE | SIZE | GRADE | MBS | LENGTH | NET WEIGHT |
|---|---|---|---|---|---|
| AL864060 | 6mm | 1570 | 15.8kN | 1000m | 114.0kg |
| AL864080 | 8mm | 1570 | 28.2kN | 1000m | 204.0kg |
| AL864100 | 10mm | 1570 | 44.9kN | 1000m | 318.0kg |
| AL864125 | 12mm | 1570 | 63.3kN | 500m | 229.0kg |
| AL864120 | 12mm | 1570 | 63.3kN | 1000m | 458.0kg |
| AL864135 | 13mm | 1570 | 75.9kN | 500m | 269.0kg |
| AL864130 | 13mm | 1570 | 75.9kN | 1000m | 538.0kg |
| AL864145 | 14mm | 1570 | 86.2kN | 500m | 312.0kg |
| AL864140 | 14mm | 1570 | 86.2kN | 1000m | 624.0kg |
| AL864165 | 16mm | 1570 | 113.0kN | 500m | 412.50kg |
| AL864185 | 18mm | 1570 | 143.0kN | 500m | 515.0kg |
| AL864205 | 20mm | 1570 | 176.0kN | 500m | 635.0kg |
| AL864225 | 22mm | 1570 | 213.0kN | 500m | 770.0kg |
| AL864245 | 24mm | 1570 | 253.0kN | 500m | 875.0kg |
