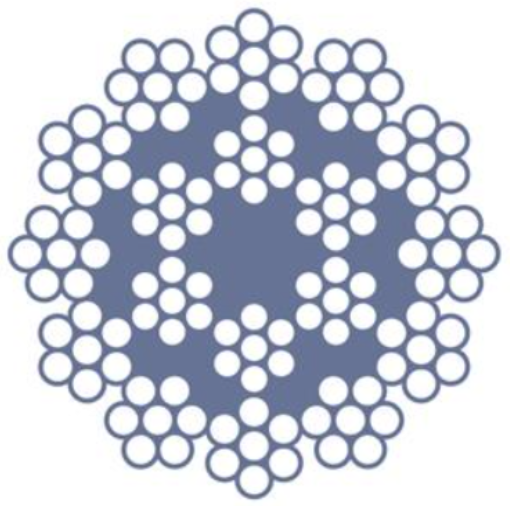

18×7+FC G2070 Galvanised Wire Rope
- Brand: Austlift
Our 18x7 non-rotating wire ropes have a non-spin characteristic suitable for lifting rope on cranes. Available by the metre or reel.
- Australian Standard: AS 3569
Features
Industries
Documents
Features
- Non-rotating and non-spin
- Manufactured from G2070 galvanised steel
Industries
- Civil
- Construction
- Cranes
- Engineering
- Entertainment
- Infrastructure
- Lifts/Elevators
- Marine
- Ports
Documents
Specifications
Dimensions
Specifications
PRODUCT CODE | SIZE | GRADE | MBS | LENGTH | NET WEIGHT |
---|---|---|---|---|---|
AL886060 | 6mm | 2070 | 23.7kN | 1000m | 138.0kg |
AL886100 | 10mm | 2070 | 66.1kN | 1000m | 383.0kg |
AL886102 | 10mm | 2070 | 66.1kN | 2000m | 770.0kg |
AL886115 | 11mm | 2070 | 79.8kN | 500m | 231.5kg |
AL886125 | 12mm | 2070 | 95.0kN | 500m | 275.5kg |
AL886135 | 13mm | 2070 | 111.0kN | 500m | 328.0kg |
AL886140 | 14mm | 2070 | 130.0kN | 1000m | 750.0kg |
